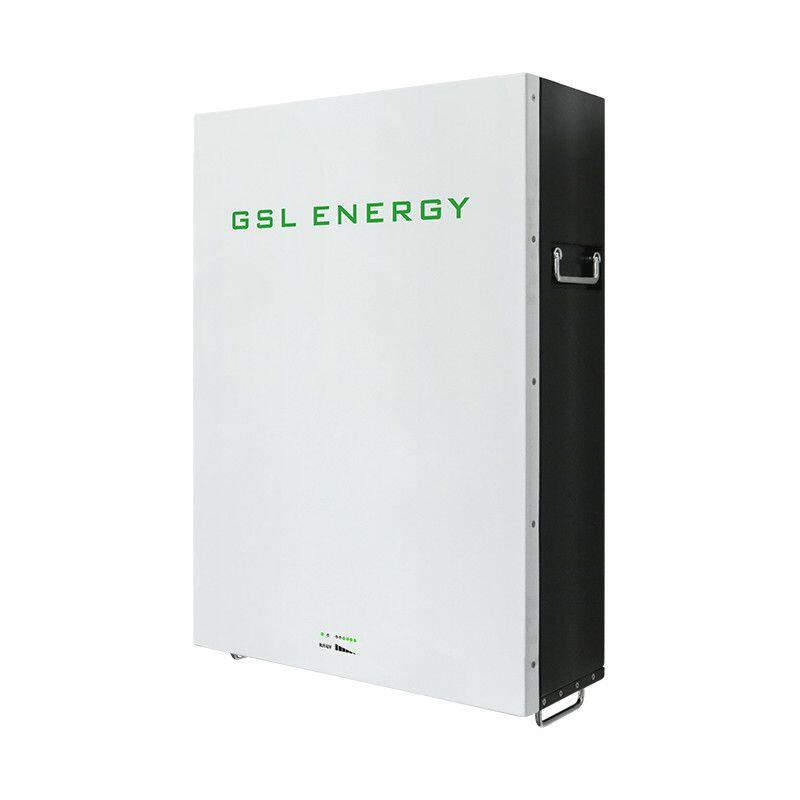

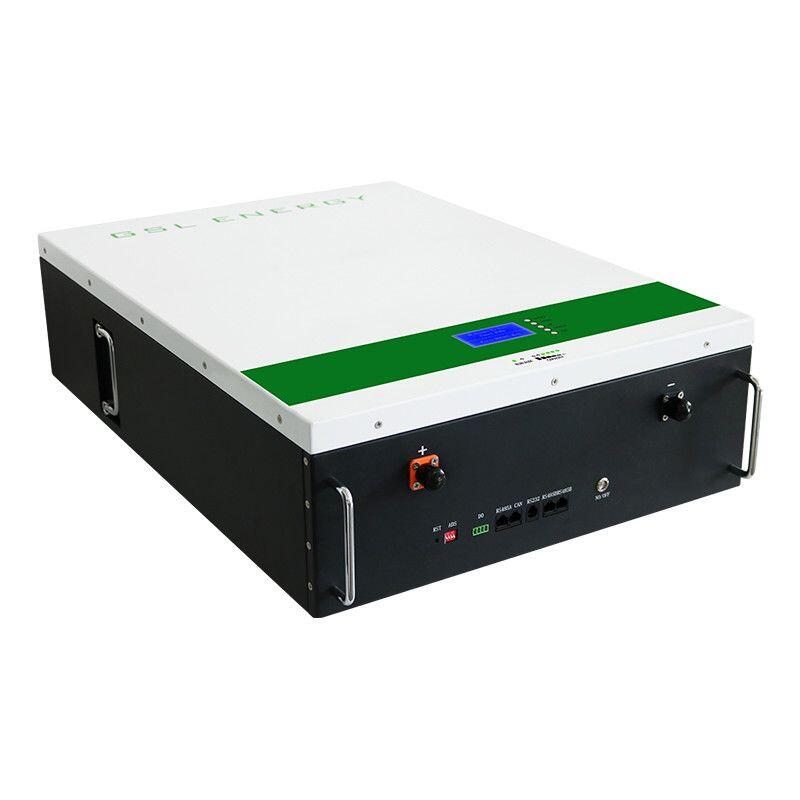

GLS Solar Energy Power Storage Wall with Lithium Battery (5Kwh – 14.33kwh)

SKU:

Availability:

Availabe on backorder - Delivery in 2-3 weeks

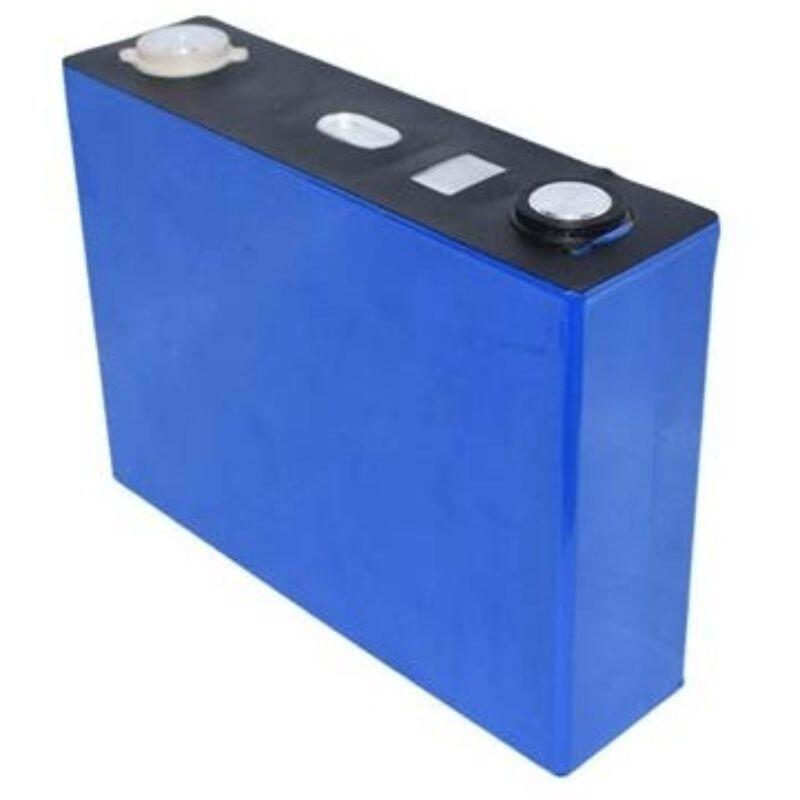

GSL’s power storehouse wall ESS adopts the rearmost HESS battery system. This product has the features of the fashionable design, high energy, high power viscosity, long service life, and easiness of installation and expansion. It’s an environmentally friendly provisory power system. It uses phosphates rather than cobalt to avoid environmental enterprises, lower the possibilities of thermal raw because of indecorous disposal, and save the product cost as well. Compared with other products in the request now, this kind of product gests a lower rate of capacity loss. With state-of-the- art power conversion and energy storehouse technologies, the energy storehouse system (ESS) offers high- effectiveness power exertion capabilities for demand operation, power dispatch, renewable energy smoothing, etc. ESS system can give comprehensive energy storehouse for domestic, marketable and mileage operations. Its Li-ion battery portfolio covers cells, modules 48V, closets (inner/ out-of-door) and holders, which offer guests excellent scalability and rigidity to a wide variety of conditions.

3,490.004,990.00 Tax inc.

Clear
X

Ship From

Model No GSL5000U GSL7000U GSL10000U GSL14.33kwh
Nominal Parameters
Voltage 51.2V 51.2V 51.2V 51.2V
Capacity 100Ah 150Ah 200Ah 280Ah
Energy 5.12Kwh 7.68Kwh 10.24Kwh 14.33Kwh
Dimensions (LxWxH) 650*480*190mm 650*480*190mm 650*480*190mm 900*675*200mm
Weight 58.5kg 73.3kg 96kg 140kg
  Basic Parameters
Life Times (25) 20 Years
Life Cycles (80% DOD, 25) 8500 Cycles
Storage Time / Temperature 5 months @25°C; 3 months @35°C; 1 month @45°C
Operation Temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage Temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL1642, IEC62619, UN38.3, ROHS, CE-EMC
Enclosure Protection Rating IP55
  Electrical Parameter
Operation Voltage 44-58Vdc 44-58Vdc 44-58Vdc 44-58Vdc
Max.charging Voltage 58Vdc 58Vdc 58Vdc 58Vdc
Max.charging and Discharging Current 100A 150A 200A 280A
Max.Power 5120W 7680W 10240W 14330W



Parallel Connection:

  1. Max support 16 units parallel connection.
  2. Long life cycle, >6500 times at 80% DOD.
  3. Without heavy metals and environment friendly.
  4. Maintenance free, no memory effect.
  5. Internal BMS with full protection, high voltage protection with higher reliability.
  6. 15 years warranty on full set battery.

Video embedding powered by Webilop

Brand

GLS ENERGY

Weight N/A
Dimensions N/A
Battery Capacity

100 Ah, 150 Ah, 200 Ah, 280 Ah

Energy

10.24 Kwh, 14.33 Kwh, 5.12 Kwh, 7.68 Kwh

Power

10240 Watt, 14330 Watt, 5120 Watt, 7680 Watt

Power Supply

51.2 V
