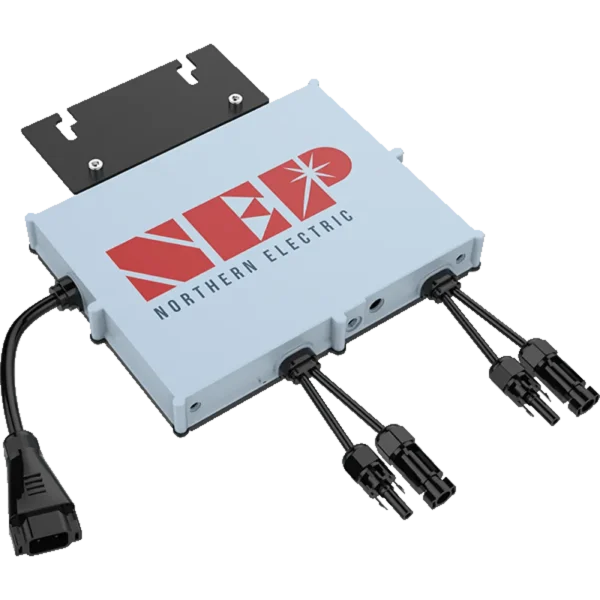

NEP BDM-800 Solar Microinverter with Rated AC Output Power of 800 Watt

Availability:

Available - Last items in stock


NEP brings to market its line of solar microinverters and it treats energy solutions with solar photovoltaic energy through its new solar microinverters of the NEP BDM microinverters line. The BDM-800 is a micro-inverter that generates more energy at a low cost and with an efficiency of 95%. It has an equipped monitor and power line communication with BDG-256 gateway. It can be connected to the BDM-300, BDM-250, and BDM-300×2. This micro-inverter is globally certified for Rule 21, UL1741, TUV, NEMA-6/IP-66/IP-67 enclosure rating. It has a compact design and a reduced size which offer flexibility in its installation. It is very easy to control and it monitor in real time. The NEP inverters combine an innovative digital control technology and a very efficient power conversion technology to achieve superior solar power harvesting and maximum reliability. It is equipped with a fixed-voltage technology that ensures that the solar inverter is always functioning at its maximum input voltage, regardless of the number of modules in a string or environmental conditions.

249.00 300.00 Tax inc.

Available - Last items in stock

X

Ship From

Product Characteristics

Model No.
BDM-800
Specification
Power
0.81 kW
Warranty
Product Warranty (Min)
10 Years
Input Data(DC)
Max. DC Power
0.99 kW
Max. DC Voltage
60 V
Min. DC Voltage to Start Feed In
22 V
Max. DC Current
40 A
MPP(T) Voltage Range
22~55 V
No of MPP Trackers
2
DC Inputs
2
Connectors
MC4, Tyco
Output Data (AC)
Max. AC Power
0.81 kW
Nominal AC Power
0.78 kW
Output AC Voltage Range
183~264 V
Nominal AC Voltage
208, 230, 240 V
Rated AC Current
3.2 A
Frequency Range
59.3-60.5 Hz
Frequency
50, 60 Hz
Power Factor (cosθ)
0.99
Distortion (THD)
< 3 %
No of feed-in phases
1, 3
Max. Efficiency
99.5 %
Euro Efficiency
95.2 %
General Data
Dimensions (H/W/D)
190x250x38 mm
Weight
4.2 kg
Operating Temperature -40 ~ +85 ℃
Transformer Yes
Protection Class IP67, NEMA 6
Cooling Natural
Display LED
Protection Features
Protection Features Anti Island Protection(ENS), Short Circuit Protection, Overload Protection, Overvoltage Protection, Overcurrent Protection, Overtemperature Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, DC Load Disconnector, Ground Fault Monitoring, Isolation Monitoring, Grid Monitoring
