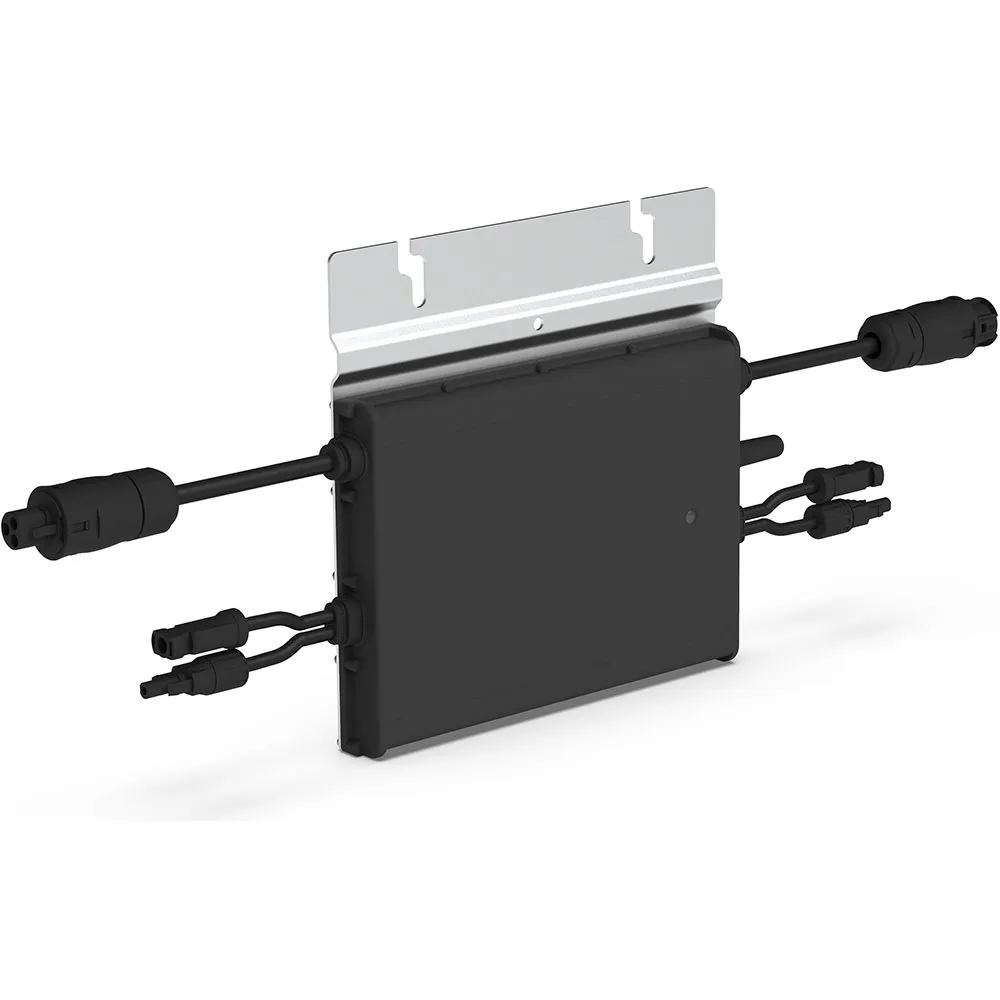

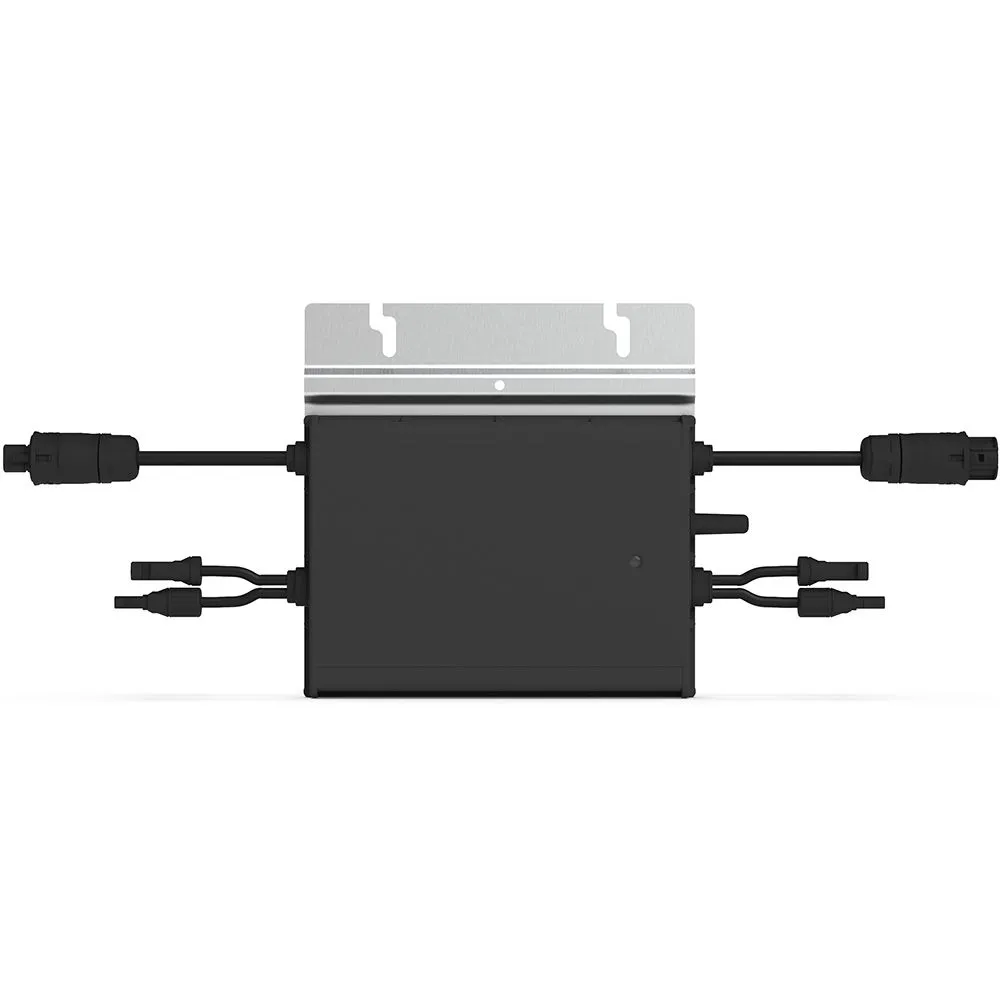

HOYMILES HM-600/700/800 Solar Microinverter with Power of 600/700/800 Watt

Availability:

Available - Last items in stock


Hoymiles brings to market its line of solar microinverters and it treats energy solutions with solar photovoltaic energy through its new solar microinverters of the Hoymiles HM microinverters line. The HM is a micro-inverter that generates more energy at a low cost and with an efficiency of 95%. It has an equipped monitor and power line communication with Hoymiles gateway DTU. All of these models are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc. It has a compact design and a reduced size which offer flexibility in its installation. It is very easy to control and it monitor in real time. The Hoymiles inverters combine an innovative digital control technology and a very efficient power conversion technology to achieve superior solar power harvesting and maximum reliability. It is equipped with a fixed-voltage technology that ensures that the solar inverter is always functioning at its maximum input voltage, regardless of the number of modules in a string or environmental conditions.

244.00289.00 Tax inc.

X

Ship From

Model No. HM-600A HM-700A HM-800A
Warranty
Product Warranty (Min) 25 Years 25 Years 25 Years
Input Data(DC)
Max. DC Power 0.76 kW 0.88 kW 0.96kW
Max. DC Voltage 60 V 60 V 60 V
Min. DC Voltage to Start Feed In 22 V 22 V 22 V
Max. DC Current 23 A 23 A 25 A
MPP(T) Voltage Range 29~48 V 33~48 V 34~48 V
Output Data (AC)
Max. AC Power 0.6 kW 0.7 kW 0.8 kW
Output AC Voltage Range 180~275 V 180~275 V 180~275 V
Nominal AC Voltage 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V
Frequency Range 55-65 Hz 55-65 Hz 55-65 Hz
Frequency 60 Hz 60 Hz 60 Hz
Power Factor (cosθ) 0.8 0.8 0.8
Distortion (THD) < 3 % < 3 % < 3 %
Max. Efficiency 96.7 % 96.7 % 96.7 %
General Data
Dimensions (H/W/D) 170x250x28 mm 170x250x28 mm 170x250x28 mm
Weight 3 kg 3 kg 3 kg
Operating Temperature -40 ~ +65 ℃
Protection Class IP67
Cooling Natural
Protection Features
Protection Features Surge Protection

Video embedding powered by Webilop

Brand

HOYMILES

Weight 3 kg
Dimensions 17 × 25 × 2.8 cm
Power

600 Watt, 800 Watt, 700 Watt

Color

Black
