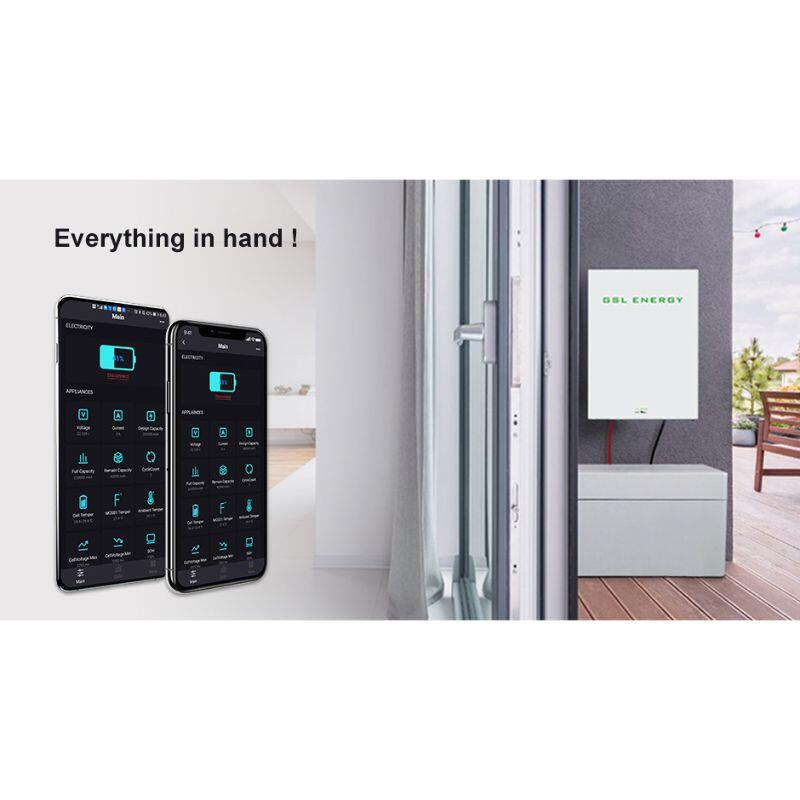

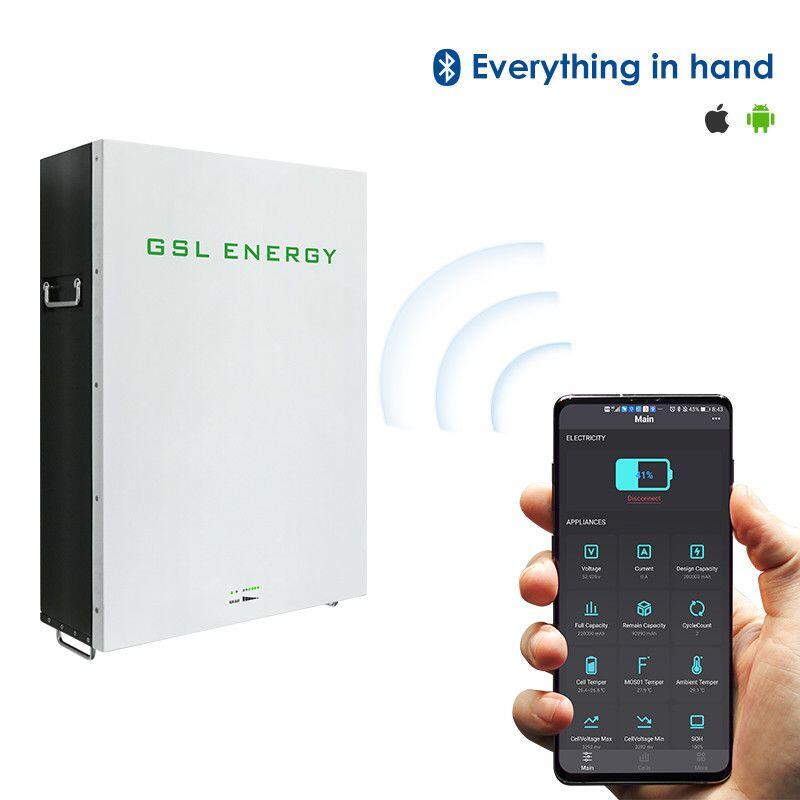

high capacity power energy wall with control by mobile

Click to enlarge

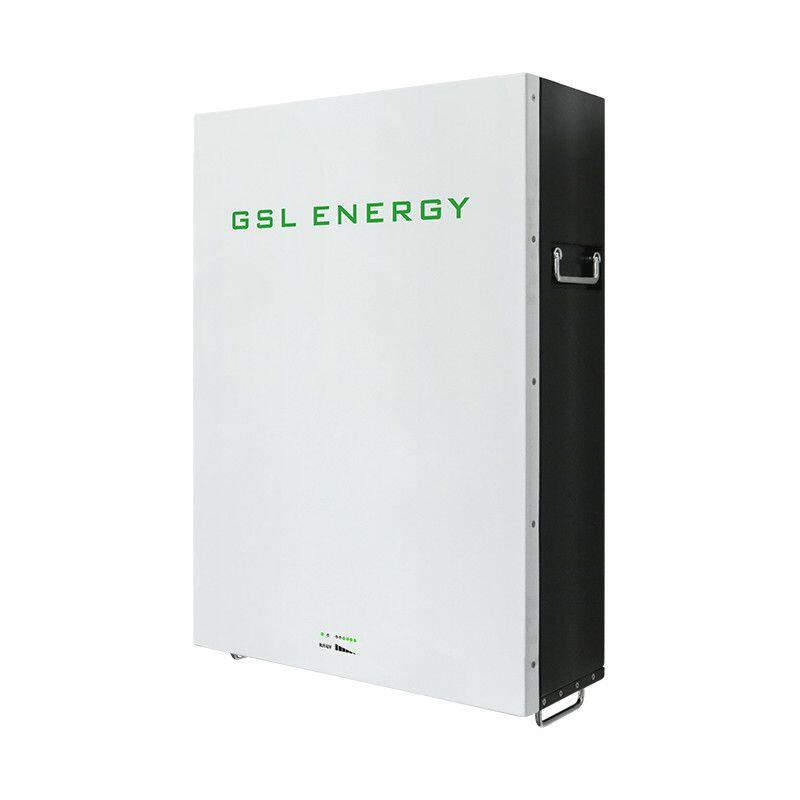

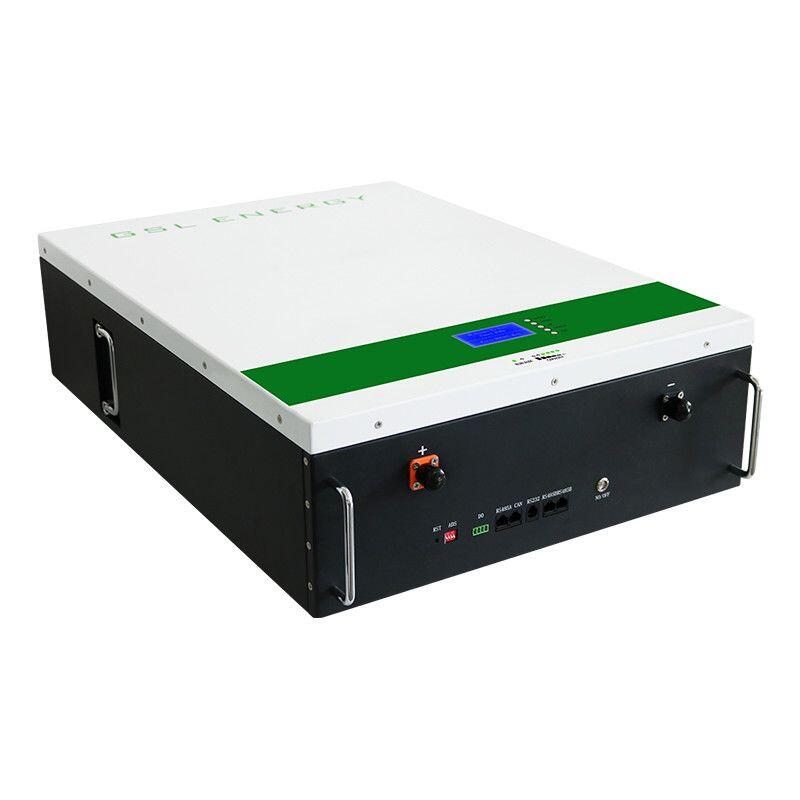

GLS Solar Energy Power Storage Wall with Lithium Battery (5Kwh – 14.33kwh)

Name: GLS Solar Energy Power Storage Wall with Lithium Battery (5Kwh – 14.33kwh)
SKU: NEWTECH4710180819832
Availability: InStock

GSL’s power storehouse wall ESS adopts the rearmost HESS battery system. This product has the features of the fashionable design, high energy, high power viscosity, long service life, and easiness of installation and expansion. It’s an environmentally friendly provisory power system. It uses phosphates rather than cobalt to avoid environmental enterprises, lower the possibilities of thermal raw because of indecorous disposal, and save the product cost as well. Compared with other products in the request now, this kind of product gests a lower rate of capacity loss. With state-of-the- art power conversion and energy storehouse technologies, the energy storehouse system (ESS) offers high- effectiveness power exertion capabilities for demand operation, power dispatch, renewable energy smoothing, etc. ESS system can give comprehensive energy storehouse for domestic, marketable and mileage operations. Its Li-ion battery portfolio covers cells, modules 48V, closets (inner/ out-of-door) and holders, which offer guests excellent scalability and rigidity to a wide variety of conditions.

SKU: NEWTECH4710180819832

Price range: 3,490.00 € through 4,990.00 € VAT Inc.

Battery Capacity

Energy

Power

Clear

Stock Information

Scroll Location

Add to wishlist

Add to compare

39 People watching this product now!

Description

Model No	GSL5000U	GSL7000U	GSL10000U	GSL14.33kwh
	Nominal Parameters
Voltage	51.2V	51.2V	51.2V	51.2V
Capacity	100Ah	150Ah	200Ah	280Ah
Energy	5.12Kwh	7.68Kwh	10.24Kwh	14.33Kwh
Dimensions (LxWxH)	650480190mm	650480190mm	650480190mm	900675200mm
Weight	58.5kg	73.3kg	96kg	140kg
	Basic Parameters
Life Times (25℃)	20 Years
Life Cycles (80% DOD, 25℃)	8500 Cycles
Storage Time / Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C
Operation Temperature	-20°C to 60°C @60+/-25% Relative Humidity
Storage Temperature	0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard	UL1642, IEC62619, UN38.3, ROHS, CE-EMC
Enclosure Protection Rating	IP55
	Electrical Parameter
Operation Voltage	44-58Vdc	44-58Vdc	44-58Vdc	44-58Vdc
Max.charging Voltage	58Vdc	58Vdc	58Vdc	58Vdc
Max.charging and Discharging Current	100A	150A	200A	280A
Max.Power	5120W	7680W	10240W	14330W

Parallel Connection:

Max support 16 units parallel connection.
Long life cycle, >6500 times at 80% DOD.
Without heavy metals and environment friendly.
Maintenance free, no memory effect.
Internal BMS with full protection, high voltage protection with higher reliability.
15 years warranty on full set battery.

Video

Additional information

Weight	N/A
Dimensions	N/A
Battery Capacity	100 Ah , 150 Ah , 200 Ah , 280 Ah
Power Supply	51.2 V
Energy	10.24 Kwh , 14.33 Kwh , 5.12 Kwh , 7.68 Kwh
Power	10240 Watt , 14330 Watt , 5120 Watt , 7680 Watt
