Solar Balcony – Plug & Play On-grid System Set

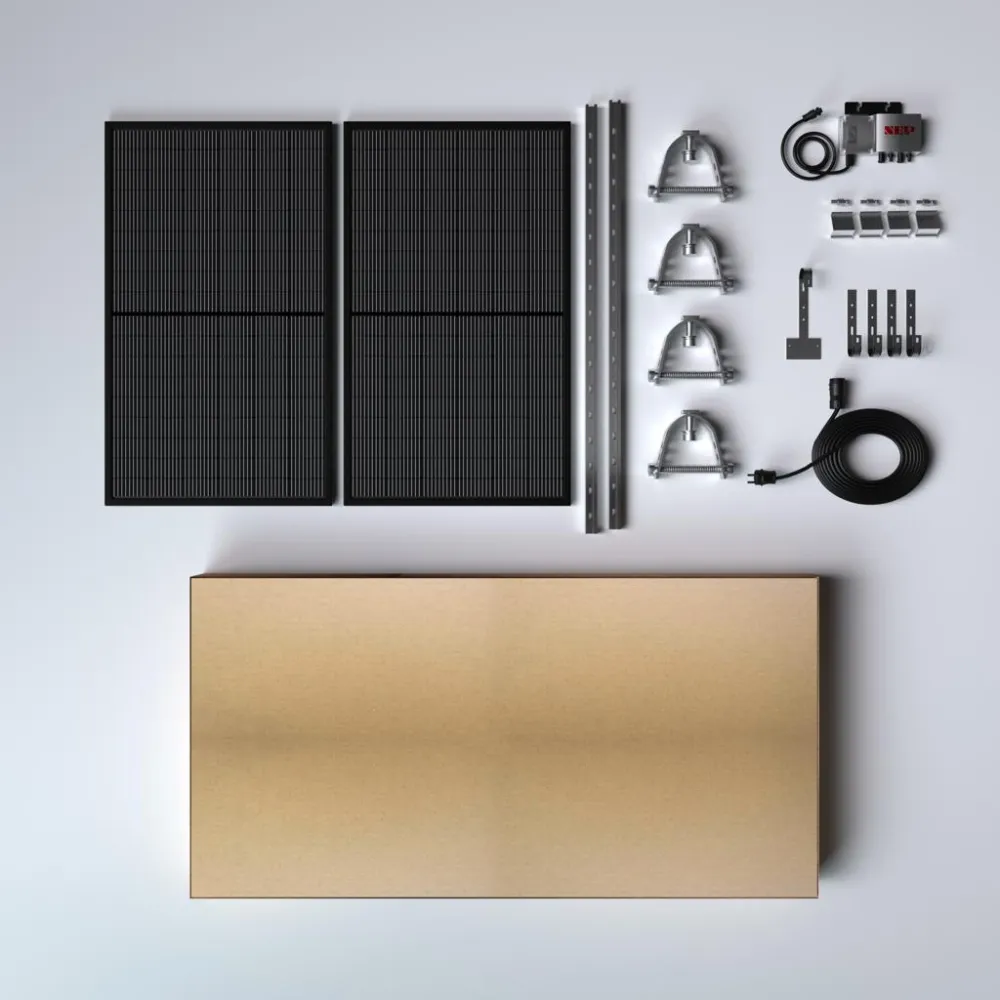

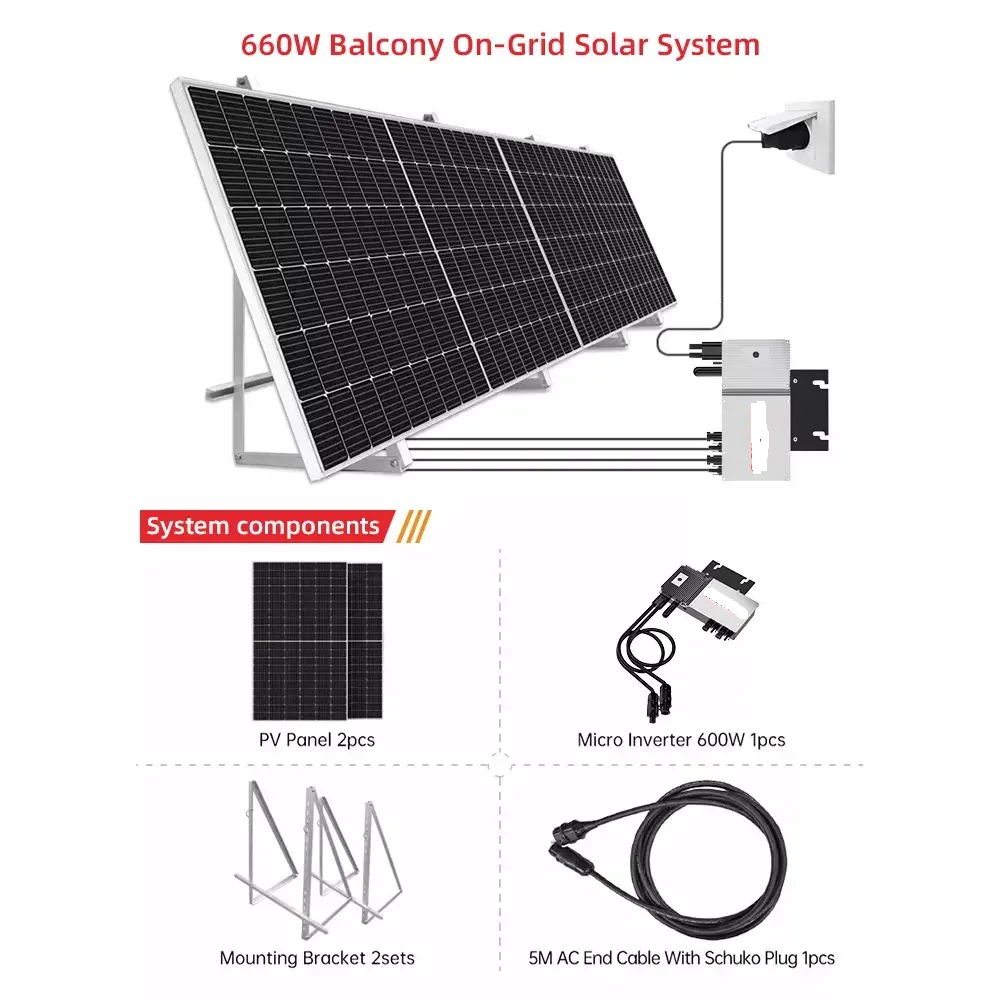

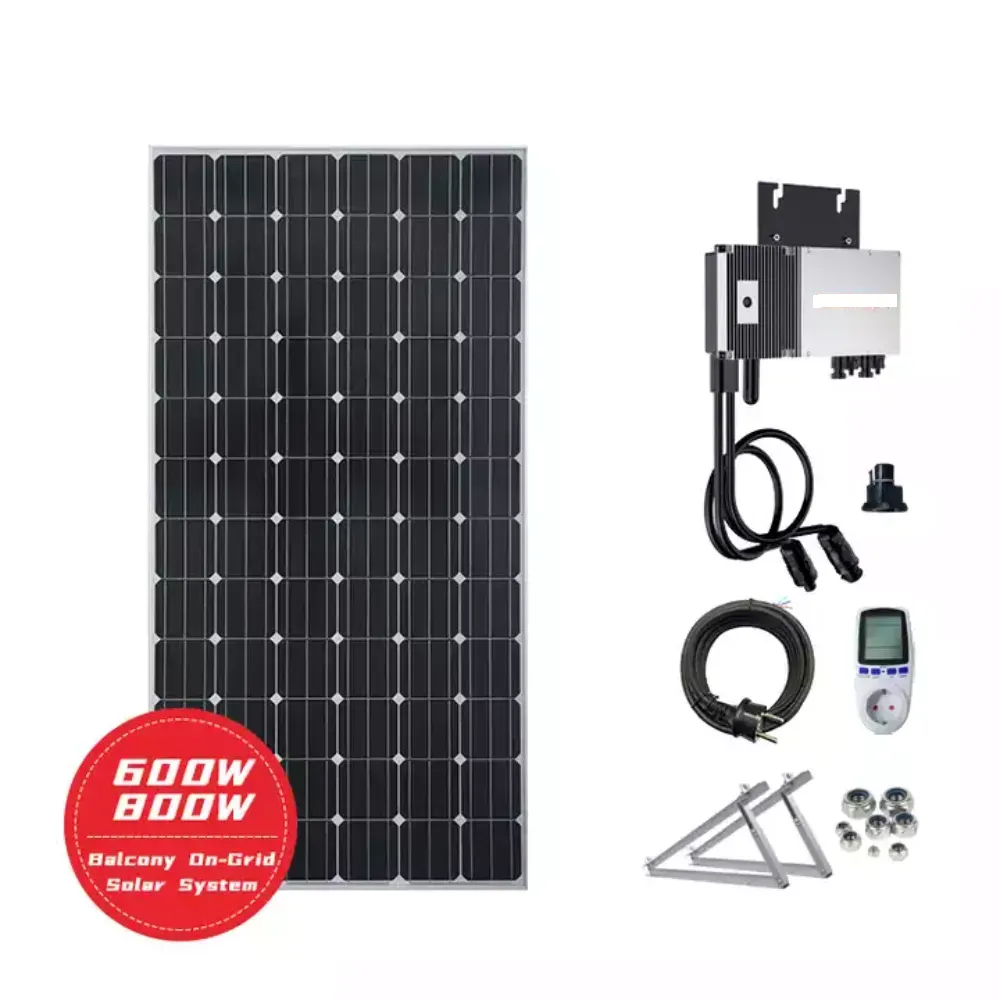

Nowadays, the cost of solar installation is very expensive and that is why this plug and play solar balcony system is the perfect solution. It can be installed by yourself, because the installation is really easy, saving you a lot of labor costs. It is equipped with a universally applicable Plug & Play system that is a simple and economical entry in the solar technology. The generated solar energy is fed into the domestic power grid by means of the inverter via the nearest socket/junction box. Thus, the electricity costs for the essential electrical load in the house are reduced and a part of the own electricity requirements in the house hold are saved. Our solar balcony system contains a Micro on grid inverter, 2 mono solar panels , 2 mounting bracket sets, a power display socket and a 5 meters cable. All of our systems have relevant TUV, CE certificates and can be installed and used in Europe.

SKU: NEWTECH4710180824819

690.00 1,090.00  Tax exc.

Stock Information

Scroll Location

37 People watching this product now!
Description

Specifications:

1) 800 Watt Power Balcony System

– Deye Solar Micro Inverter 800 Watt

Input Voltage 60V
Output Voltage 230V
Output Current 2.9A/3.8A/4.8A
Output Frequency 50/60 Hz
Output Type Single
Size 212*230*40mm
Type DC/AC Inverters
Inverter Efficiency 96.5%
Certificate IEC/ UL
Warranty 10 years
Weight 3.5kg
Product name solar Micro Inverter
Maximum input DC Voltage 60V
MPPT Voltage Range 25~55V
Operating DC Voltage Range 20~60V
Max. DC Short Circuit Current 16A
Nominal Voltage / Range 230V / 184-265V
Extended Frequency / Range 45~55Hz / 55~65Hz
Power Factor >0.99
Enclosure Environmental Rating IP67

– LONGi Solar Hi-MO5m 54HIB 400W Half-Cut Full Black

Watt 400 Module type Monofacial Framed Number of cells 108 (54)
Watt/m² 205,0 Module surface (m²) 1,953
Cell Half-cut Cell Technology M10 (182mm)
Module efficiency 20,5% Temp. Coef PMAX -0,34%/K
Panel frame color Black
Dimensions 172,2 x 113,4 x 3,0 cm Weight 21,5kg
Cable length 1 200mm – MC4-EVO2 connectors
Junction box Split box – Mid

2) 600 Watt Power Balcony Solar System

– BDM-600-WiFi Micro on grid inverter (Wifi Version)

Recommended Max PV Power (Wp) 450 x 2

Max DC Open Circuit Voltage (Vdc) 60

Max DC Input Current (Adc) 14 x 2

MPPT Tracking Accuracy >99.5%

MPPT Tracking Range (Vdc) 22-55

Isc PV (absolute maximum) (Adc) 18 x 2

Peak AC Output Power (Wp) 550

Dimension: 277x132x50 mm

Grid Code Compliance:VDE -AR-N 4105*

VDE V 0126-1-1/A1

G83/2, CEI 021

AS 4777.2 & AS

4777.3,EN50438

ABNT NBR 16149/1615

Warranty: 10 years

 – 330W mono Half Cell PERC solar panel

Pmax:330W

Vmp: 28.63V Voc: 34.6V Imp 11.53A

Size : 15880*1045*35mm ; weight :16kg

Warranty: 12years product and 25years power output

PV Cable: 1.5M*2

Package: 2pcs per carton

3) 400 Watt Balcony Solar System

– LONGi Solar Hi-MO5m 54HIB 400W Half-Cut Full Black

Watt 400 Module type Monofacial Framed Number of cells 108 (54)
Watt/m² 205,0 Module surface (m²) 1,953
Cell Half-cut Cell Technology M10 (182mm)
Module efficiency 20,5% Temp. Coef PMAX -0,34%/K
Panel frame color Black
Dimensions 172,2 x 113,4 x 3,0 cm Weight 21,5kg
Cable length 1 200mm – MC4-EVO2 connectors
Junction box Split box – Mid

– Hoymiles HMS-400 Solar Microinverter

Micro inverter for connection of 1 module

Max. PV power 540 Wp

MPP voltage range 16-60V

Max. input current 14A

Rated output current 400VA

Waterproof IP67

Weight 1,75kg

Dimensions 18.2 × 16.4 × 3 cm

Warranty 12 years

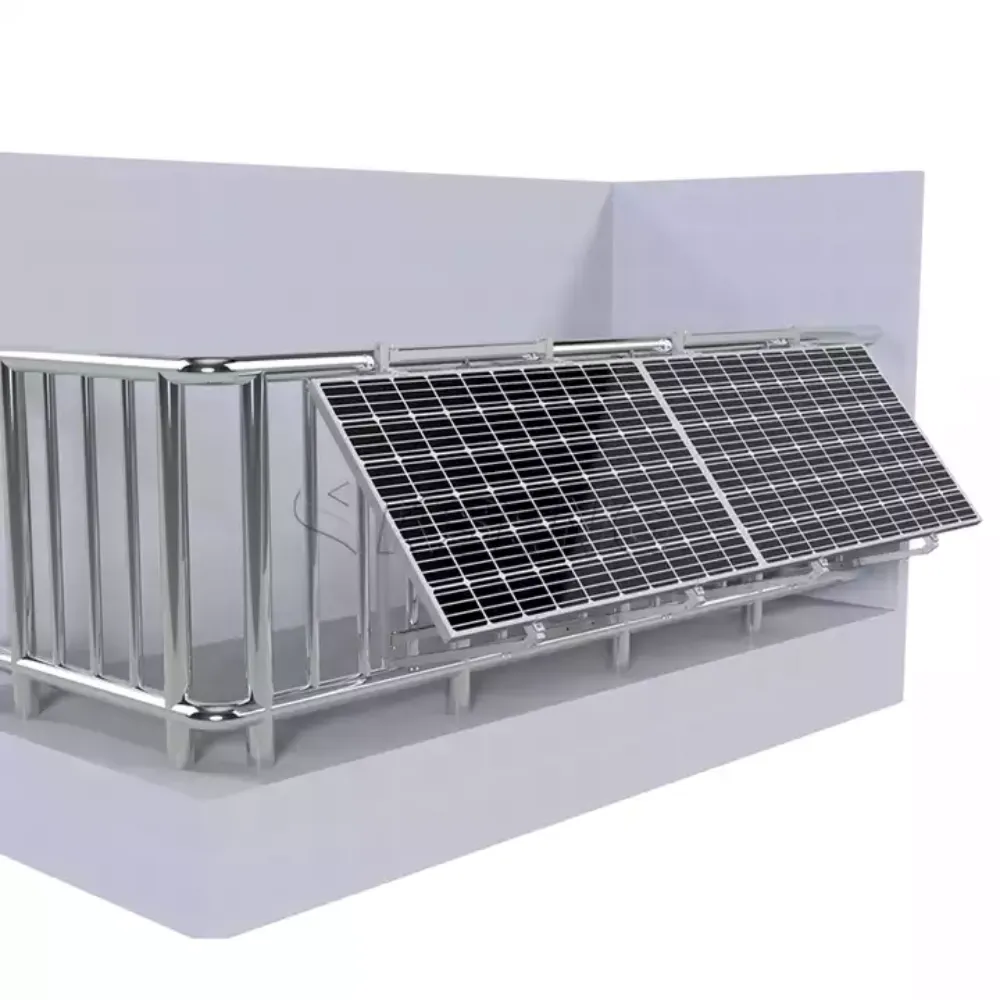

Custom Solar Bracket for all balcony systems

Adjustable slop angel: 15°-30°

Special Horizontal Beam to hang on micro inverter

Material: Allumium alloy + #304 stainess steel

2pcs panels per set

Package: 1set bracket per carton

– 5m 3*1.5mm²ac cable + Fstyle Schuko and connector

250v 16A,IP44, VDE certified

– Inverter Female Protection Cap

– Power Display Socket
