Solar Floor Tiles with High Efficiency

Name: Solar Floor Tiles with High Efficiency
SKU: 228161
Availability: InStock

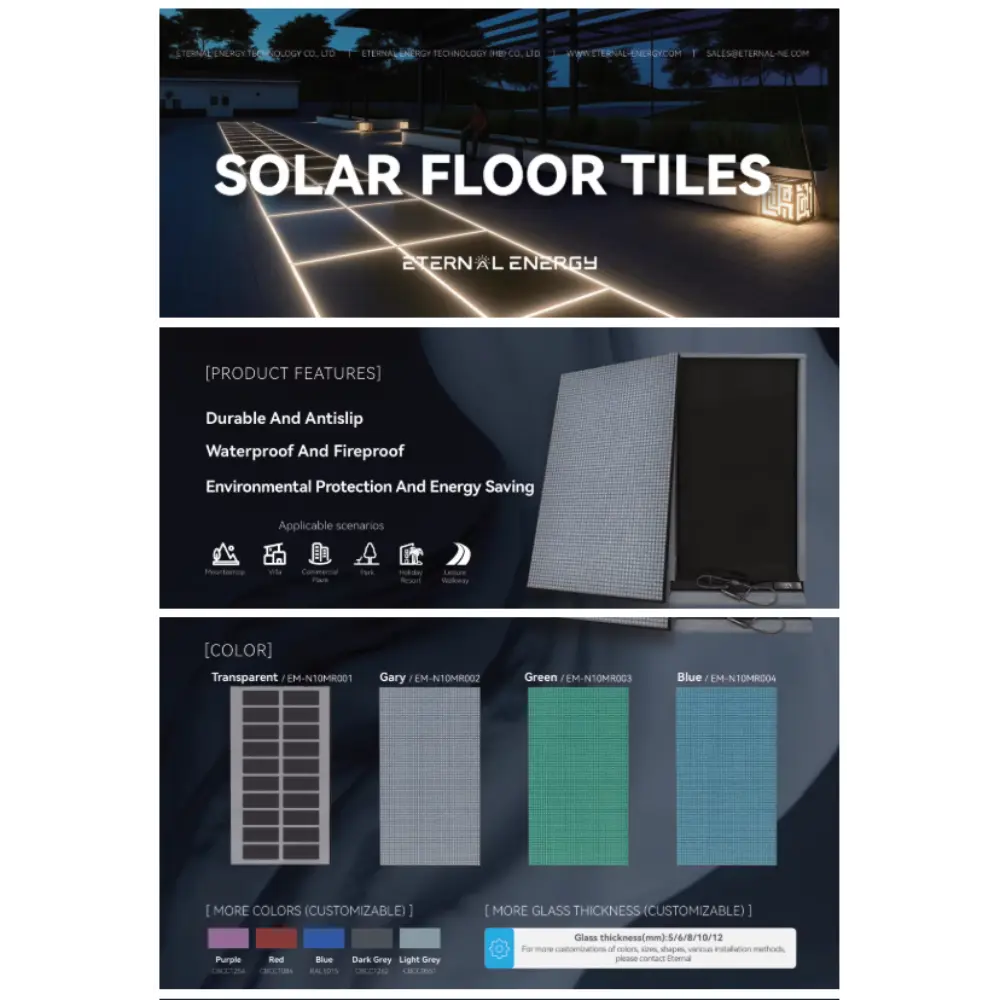

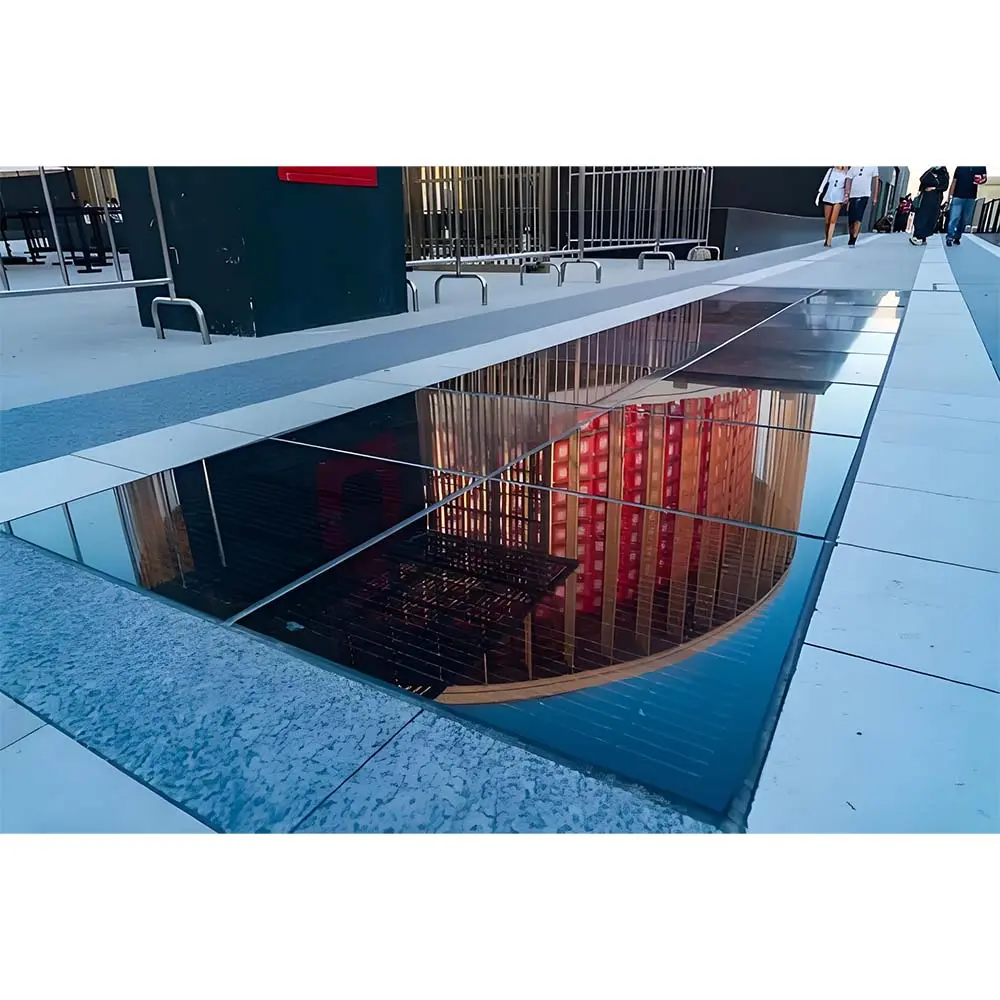

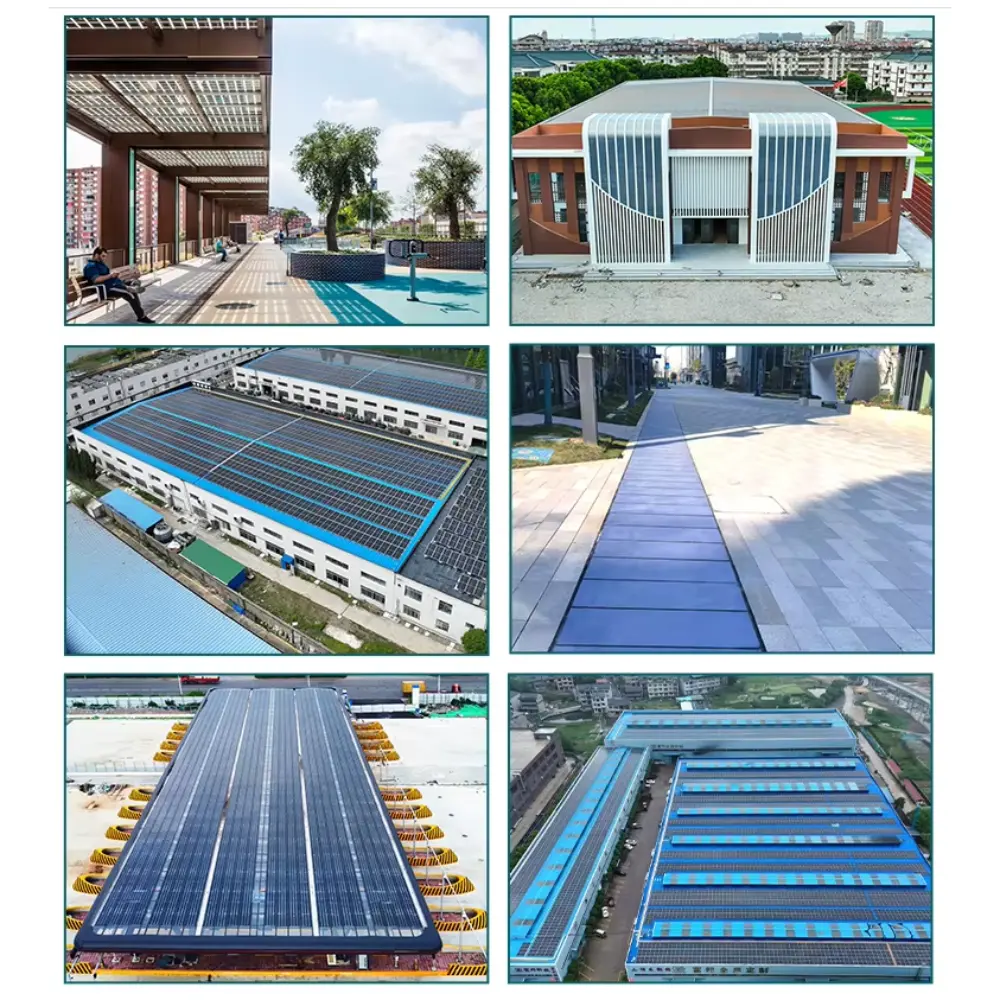

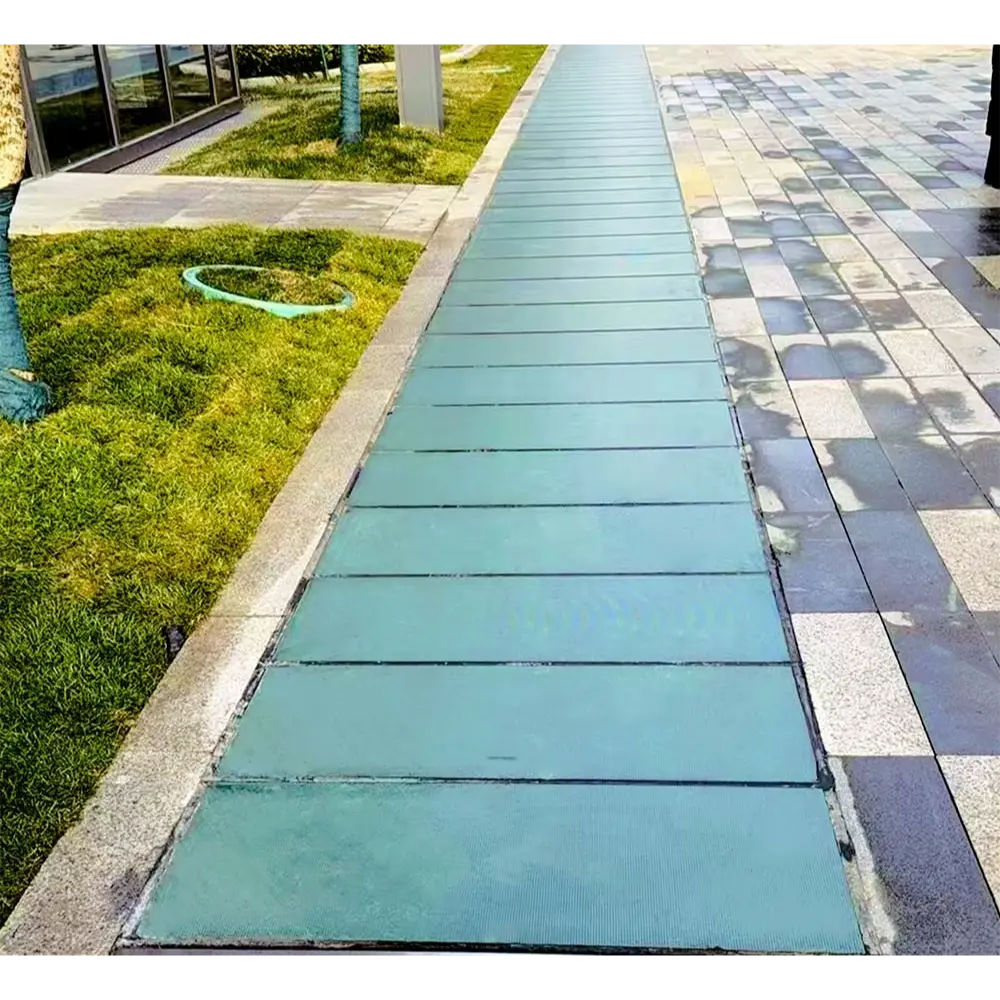

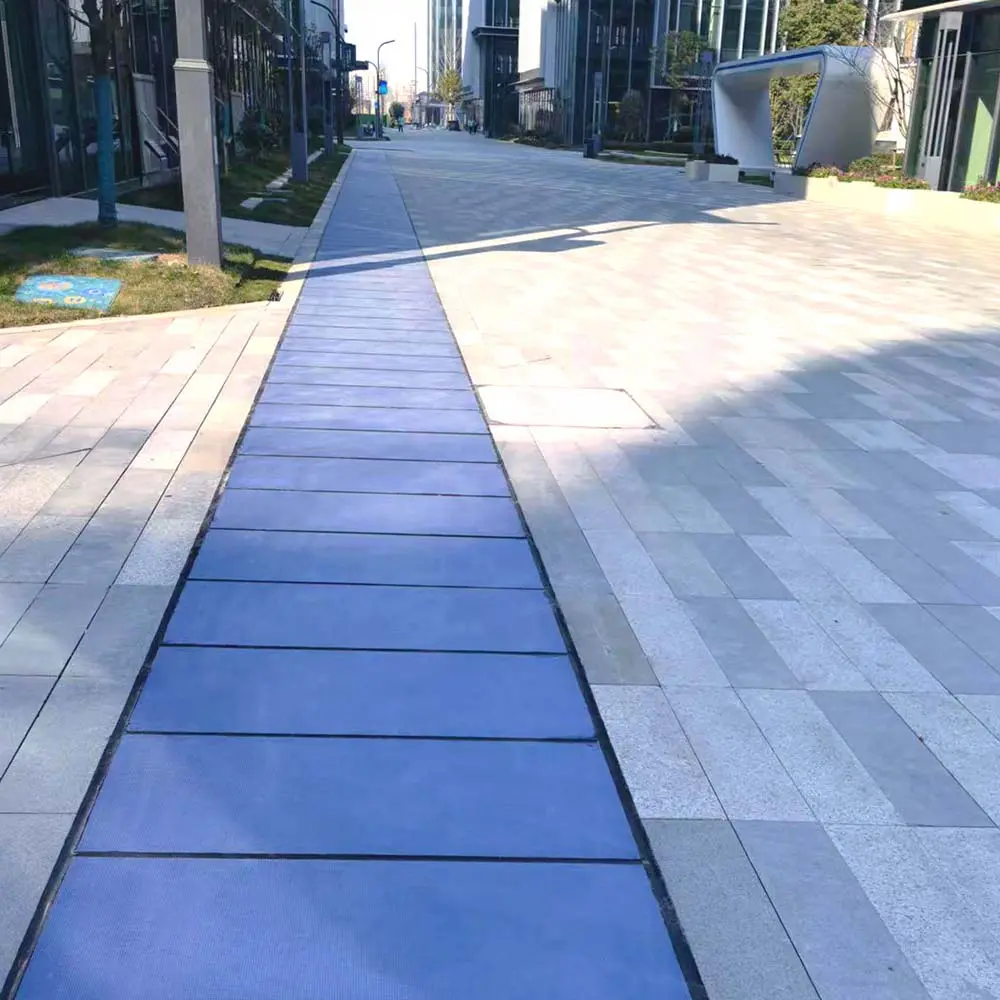

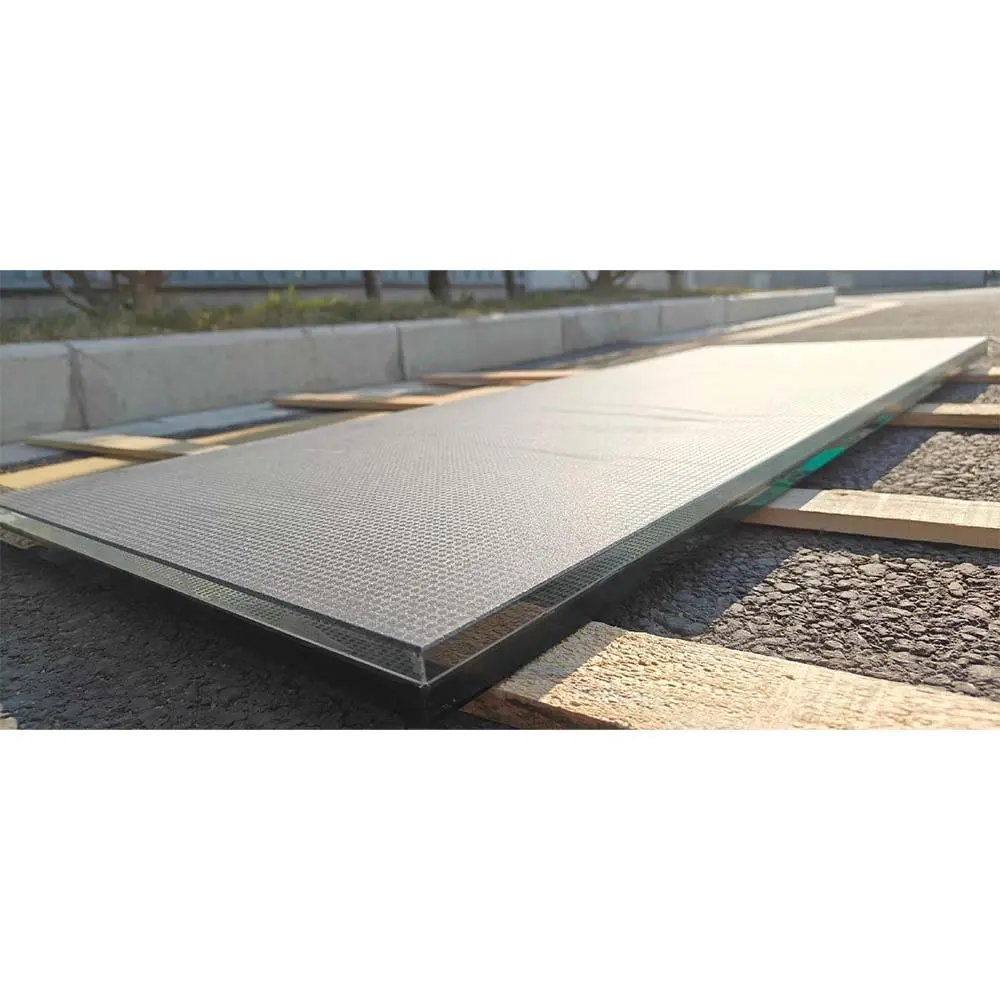

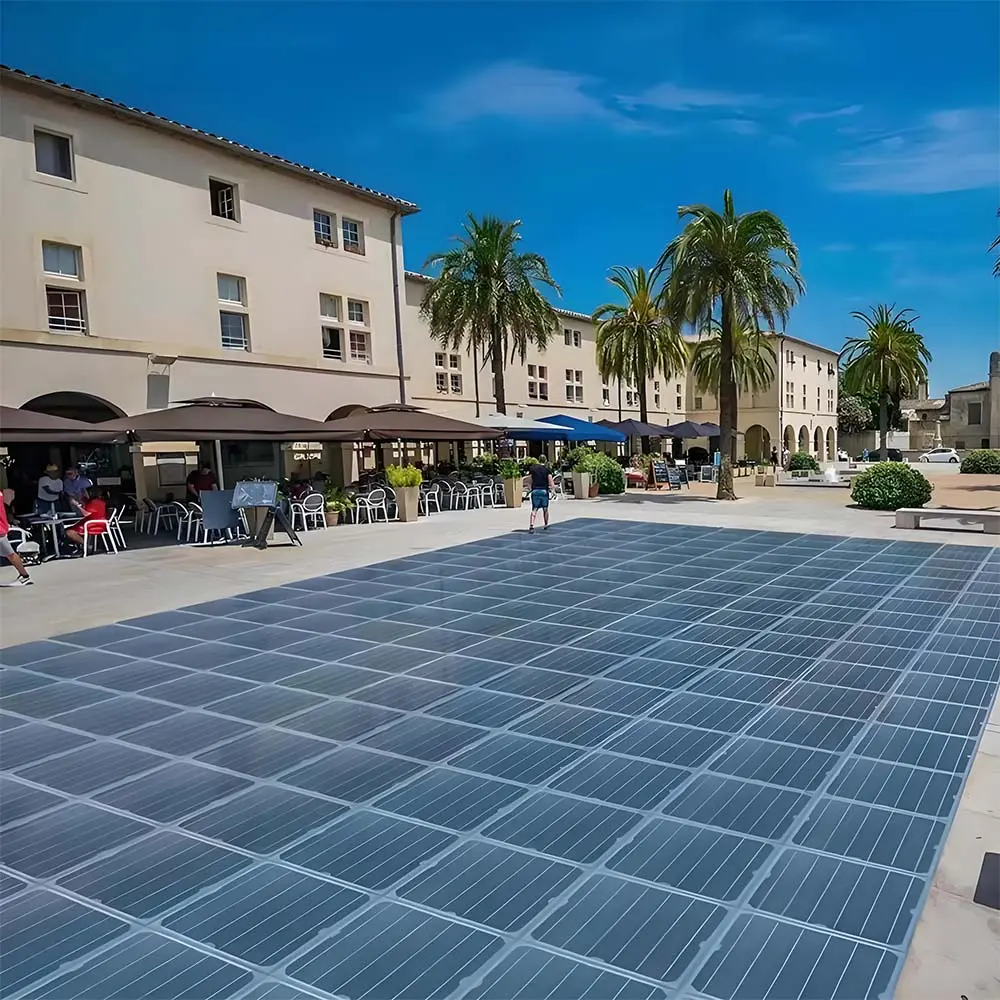

The Solar Floor Tiles with High Efficiency represent a cutting-edge fusion of architectural design and renewable energy technology. These tiles are built using monocrystalline silicon, known for its superior efficiency and sleek appearance. Designed for Building-Integrated Photovoltaics (BIPV), they serve a dual purpose: functioning as durable floor tiles while simultaneously generating solar power. This makes them ideal for eco-conscious construction projects that combine aesthetics and sustainability. The product features a Topcon system, which enhances energy conversion rates and ensures reliable performance even under variable lighting conditions. Its innovative design allows for seamless integration into modern architectural spaces, such as patios, walkways, or commercial lobbies, without compromising visual appeal. These tiles are not only weather-resistant but also engineered to withstand foot traffic, making them a practical solution for high-use areas. By incorporating solar panels directly into the flooring, users can maximize energy output while minimizing the need for traditional rooftop installations.

SKU: N/A

Original price was: 120.00 €.Current price is: 99.00 €. VAT Inc.

Color

Clear

Stock Information

Scroll Location

Add to wishlist

Add to compare

30 People watching this product now!

Description

Solar Floor Tiles with High Efficiency – Specification:

· Technology Type: Monocrystalline solar cells, Topcon system

· Integration: Building-Integrated Photovoltaics (BIPV) for flooring applications

· Max Power Output : Up to approx. 55W per tile

· Glass Type & Thickness: Tempered glass, 12+12mm laminated (customizable)

· Encapsulation Material: PVB (Polyvinyl Butyral), ensuring durability and impact resistance

· Dimensions: 1170 × 450 × 66 mm (including frame)

· Weight: 21 kg per tile

· Packing Method: L-frame with wooden box, customizable for bulk transport

· Solar Cell Type: Monocrystalline silicon

· Cell Size: 210 × 210 mm

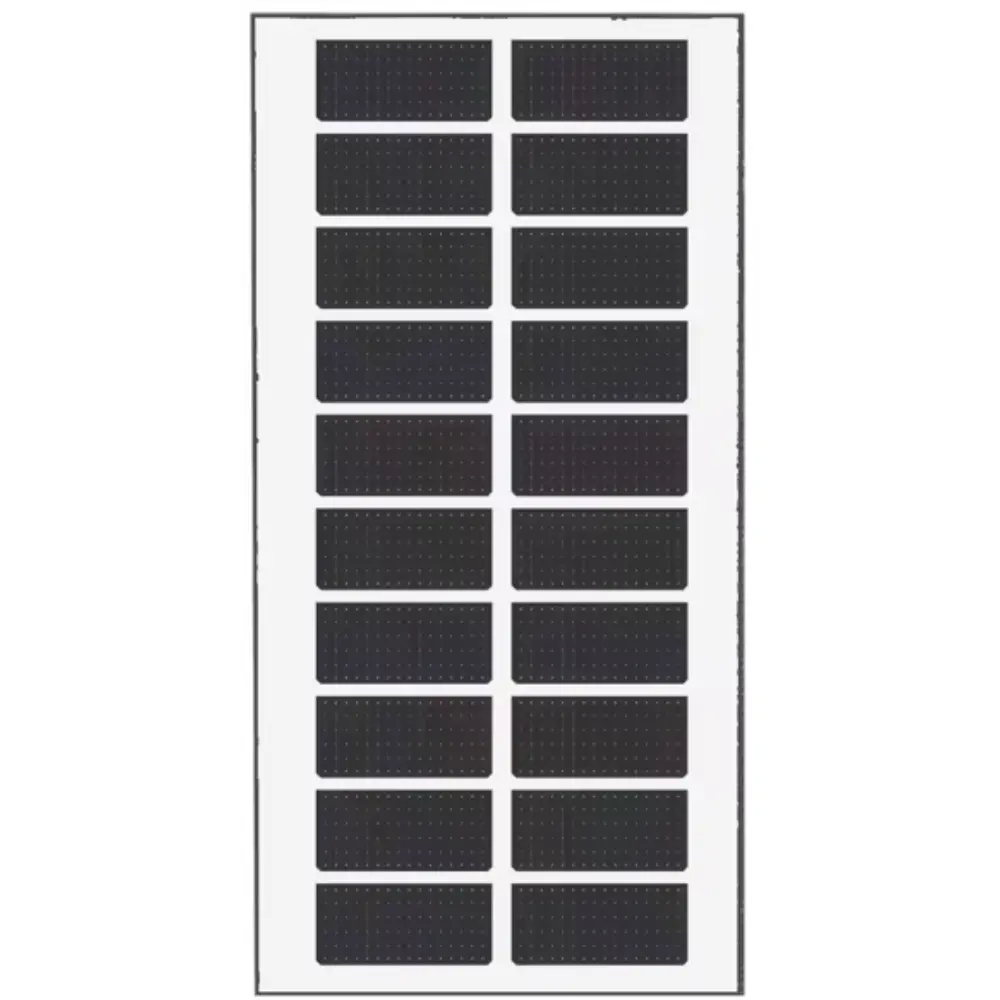

· Cell Count: 2 × 10 (20 cells total)

· Cable Length: (+)350 mm / (−)250 mm, with 4 mm² conductor cross-section (customizable)

· Connector: MC4 compatible, IP68-rated for waterproofing

· Junction Box: IP68 protection level, suitable for outdoor use

· Max System Voltage: 1500 V DC

· Max Fuse Rating: 25 A

· Operating Temperature Range: −40°C to +85°C

· Nominal Operating Temperature: 45 ± 2°C

· Temperature Coefficients: Pmax: −0.29%/°C, Voc: −0.25%/°C, Isc: +0.045%/°C

Video

Additional information

Weight	27.5 kg
Dimensions	117 × 45 × 6.6 cm

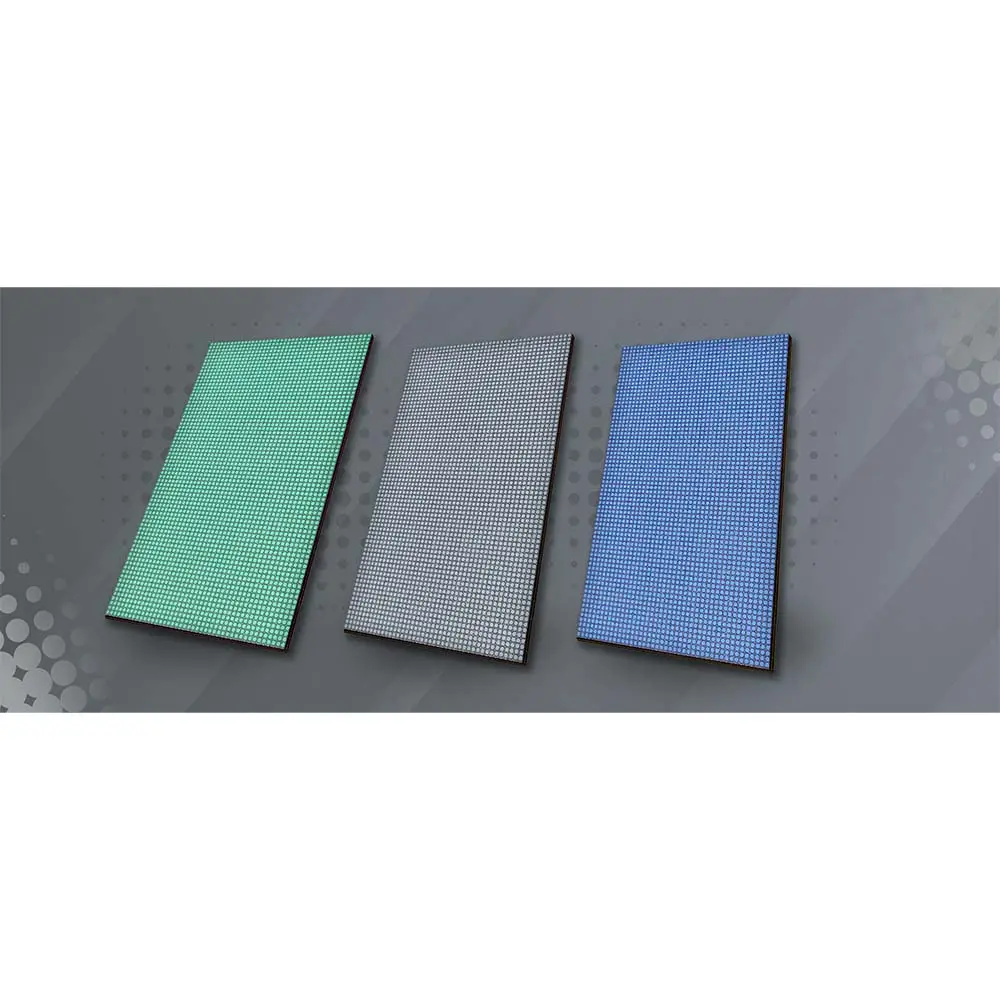

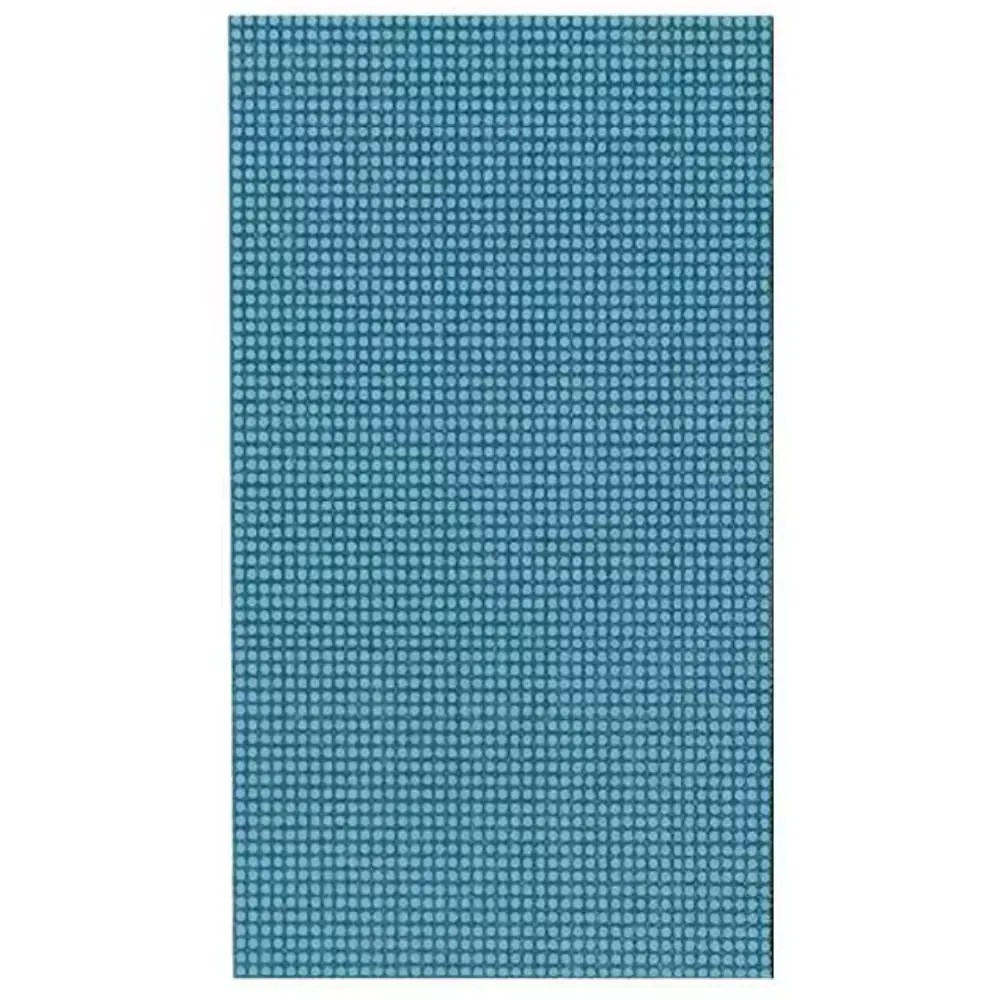

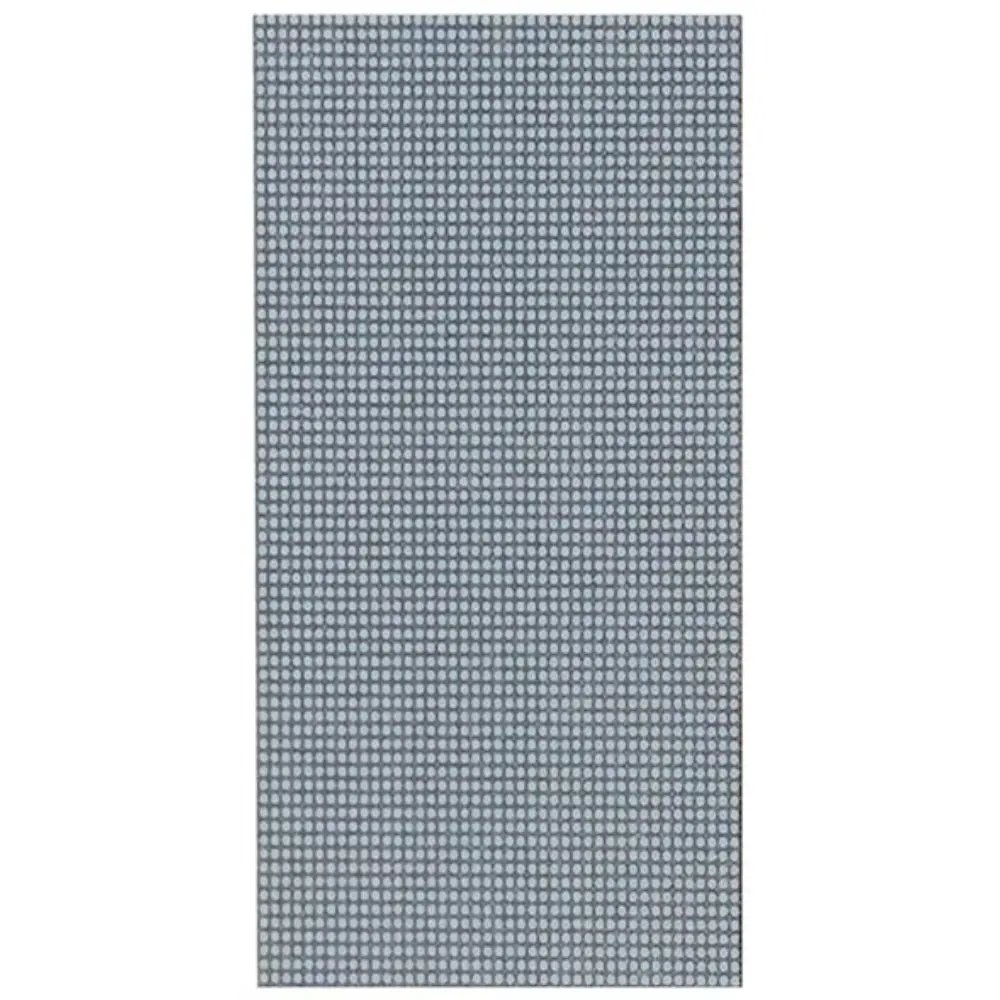

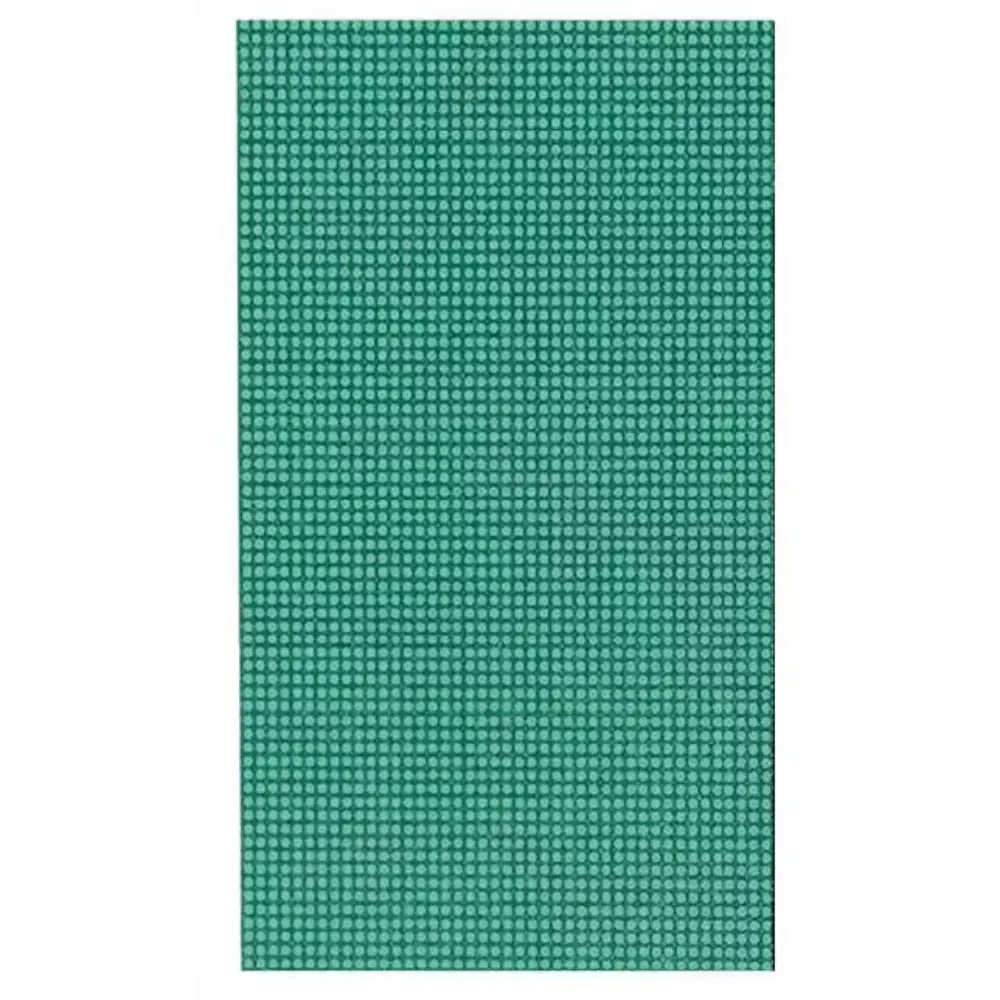

Color	Light Grey , Green , Light Blue
