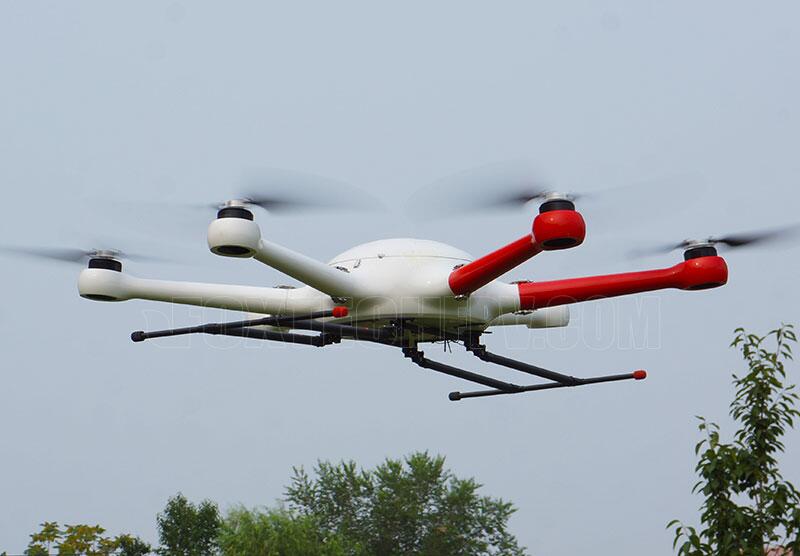

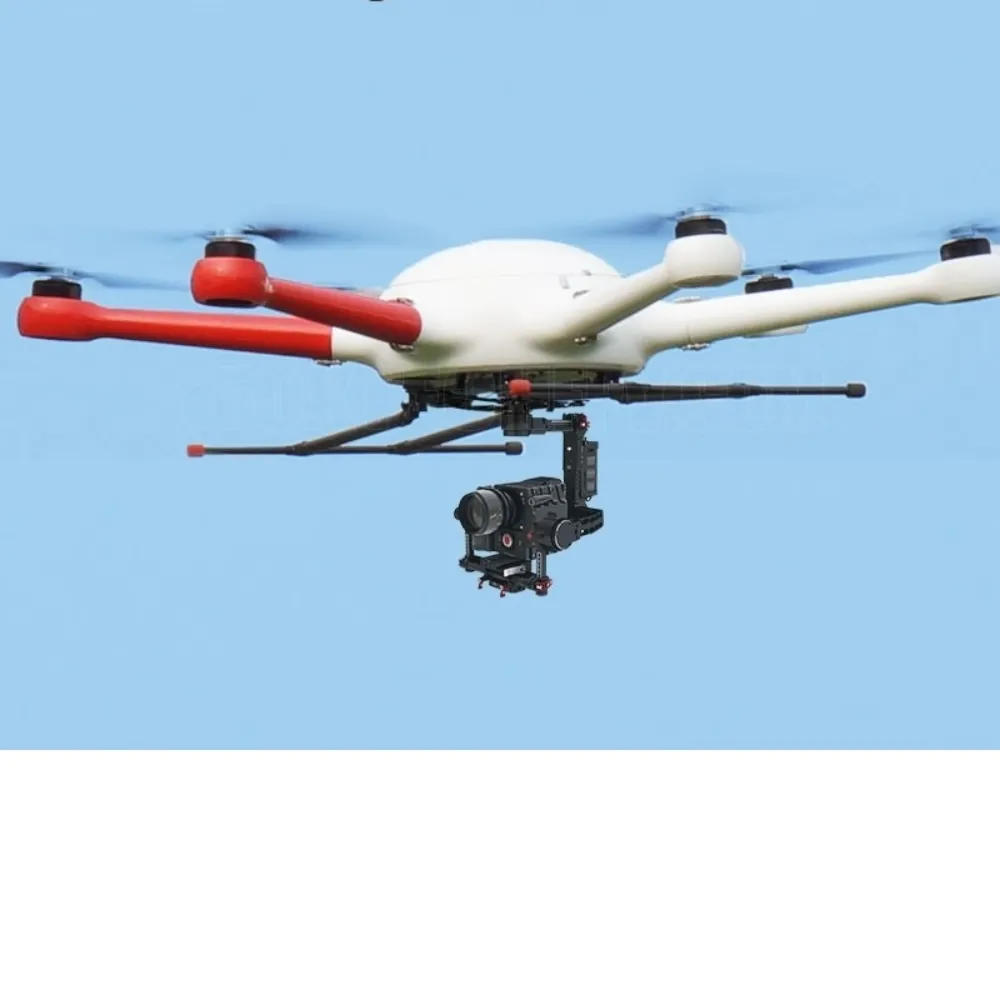

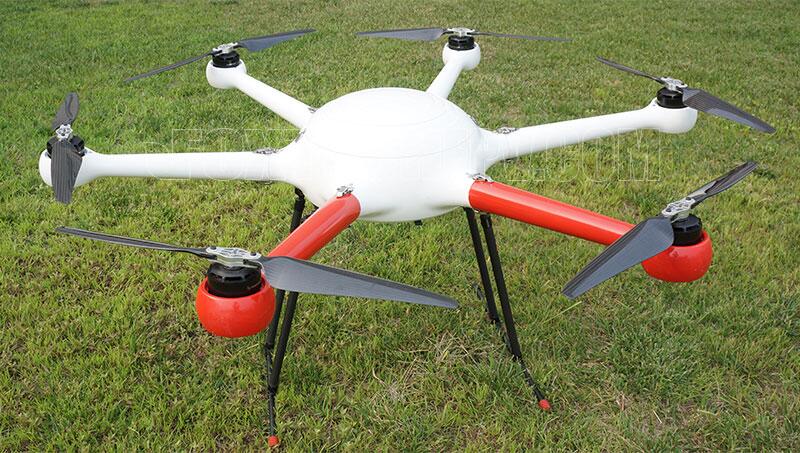

Heavy Lift Hexacopter Cargo and Mapping Drone

(1 customer review)
Availability:

Available on backorder

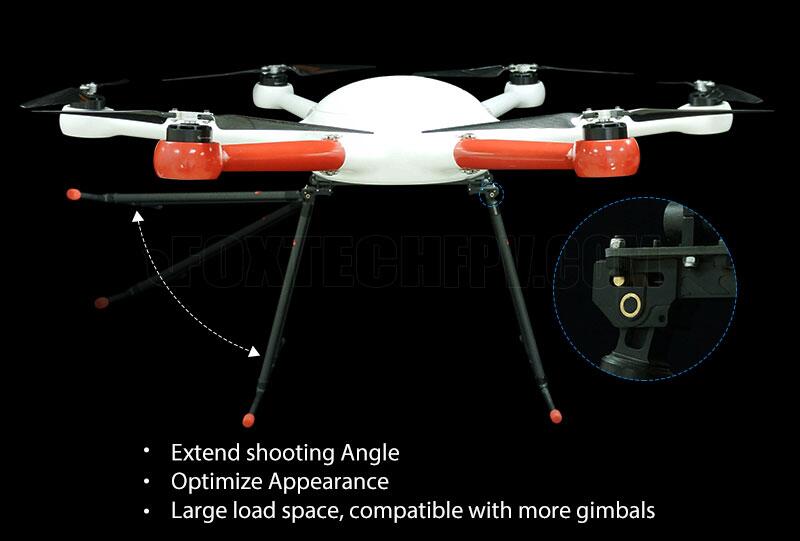

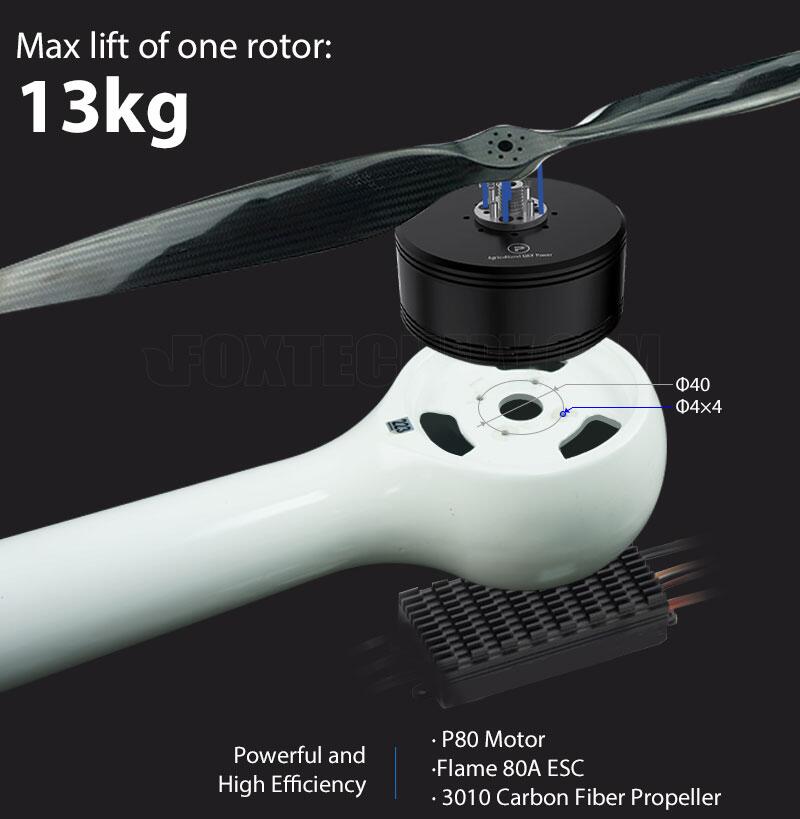

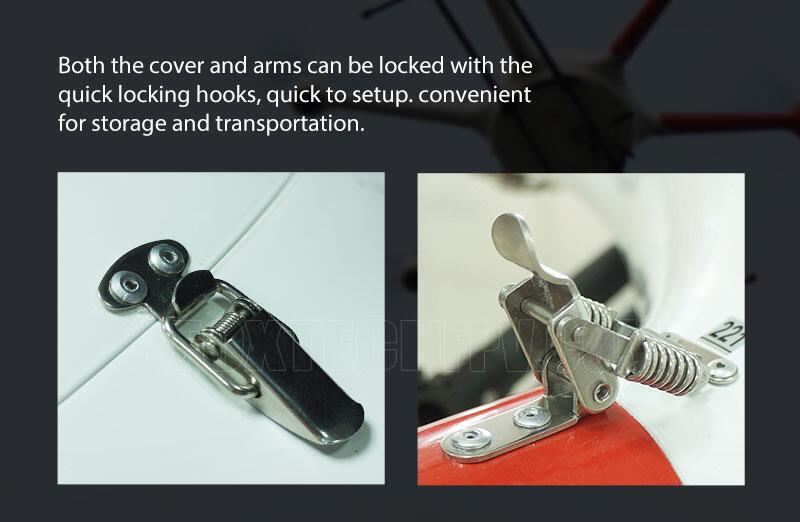

Heavy Lift Hexacopter Cargo and Mapping Drone is a multipurpose, sturdy, and stable drone that can carry up to 30 kg of payload and fly for up to 60 minutes. It has a strong body that is made of lightweight and high-strength carbon fiber material and comes with powerful motors and high-efficiency 30’’ propellers. Each of the six rotors can reach a maximum thrust of 13kg. It has pluggable arms and is equipped with a dual-folding landing gear system for easy transportation and quick setup. It can be equipped with various equipment, such as cameras, gimbals, sprayers, parachutes, a cargo delivery box, and more, and can also be customized according to your needs. Its closed fuselage structure protects it from rain and dust and makes it easy to care for. Also, its water-resistant design allows it to be applied in different weather conditions. It can be used for professional aerial photography and filming as it is compatible with many mainstream Digital Single Lens Reflex cameras and professional cameras with cinema-grade glass (Canon C300, Sony FS7, RED Dragon, etc.). Heavy Lift Hexacopter Cargo and Mapping Drone can be used for various purposes, such as emergency rescue, reconnaissance missions, surveying, aerial photography, mapping, security, agriculture, and more.

9,900.00 12,000.00 Tax inc.

Available on backorder

Compare

Ship From

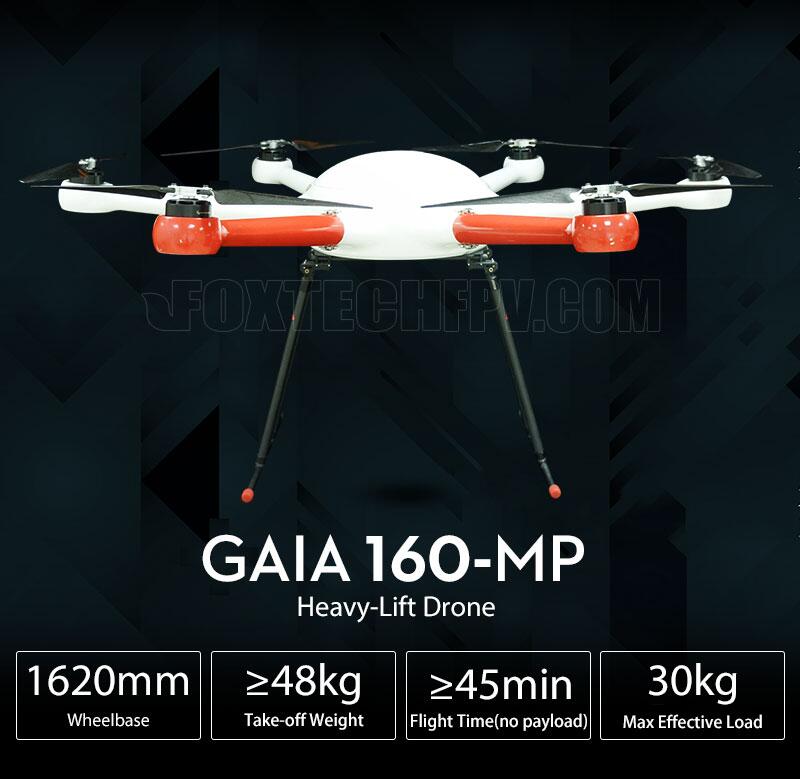

Heavy Lift Hexacopter Cargo and Mapping Drone – Specifications:

  • The default version of the landing gear  is 40cm in length (possible customization of 50cm landing gear version)
  • Version: Multipurpose heavy-lift drone
  • Wheelbase: 1620mm
  • Frame Weight: 5.8kg(with landing gear)
  • Take-off Weight: ≥48kg
  • Flight Time: ≥45min(4x6s 16000mah)
  • Max Effective Load: 30kg
  • Max flying Speed: 10m/s
  • Max Lifting Speed: 5m/s
  • Max Descent Speed: 4m/s
  • Max Angle of Inclination: 45°
  • Suggested Flight Altitude: ≤500m
  • Working Temperature: -10 ~ +55 ℃
  • Hover Precision: Vertical Direction ±0.5m, Horizontal Direction: ±1.5 m
  • Closed fuselage structure, high strength, rain resistance
  • Large load space, more stable flight
  • Long flight time
  • Powerful and high-efficiency power system
  • Convenient operation, easy maintenance

N3 RTF Combo:

-1 x hexacopter frame

-6 x T-MOTOR P80 III KV100

-6 x T-MOTOR FLAME 80A HV V2.0

-3 x 3010 Carbon Fiber Propeller

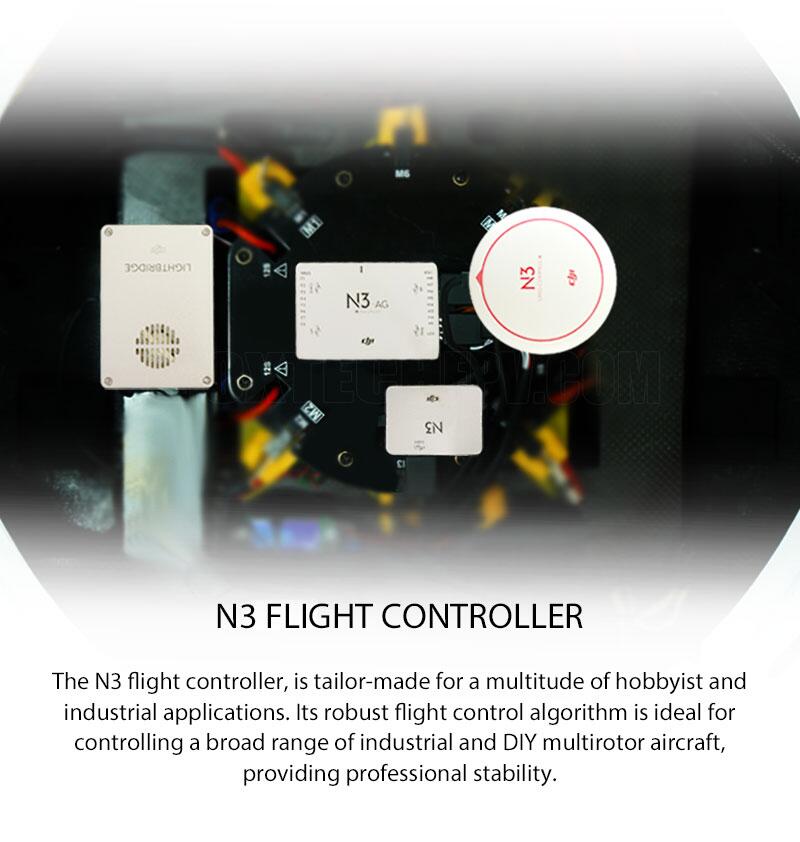

-1 x DJI N3 flight controller

-1 x DJI Lightbridge 2

-1 x Dual Landing Gear

-1 x EFT V3 High Current Power Distribution Board

-1 x Assembly and Fly Test Package

-1 x Plug/Cable/Wires/Shrink Tubing etc



A3 RTF Combo:

-1 x 160MP hexacopter frame

-6 x T-MOTOR P80 III KV100

-6 x T-MOTOR FLAME 80A HV V2.0

-3 x 3010 Carbon Fiber Propeller

-1 x DJI A3 flight controller

-1 x DJI Lightbridge 2

-1 x Dual Landing Gear

-1 x EFT V3 High Current Power Distribution Board

-1 x Assembly and Fly Test Package

-1 x Plug/Cable/Wires/Shrink Tubing etc


Heavy Lift Hexacopter Cargo and Mapping Drone


Video embedding powered by Webilop

Weight 24 kg

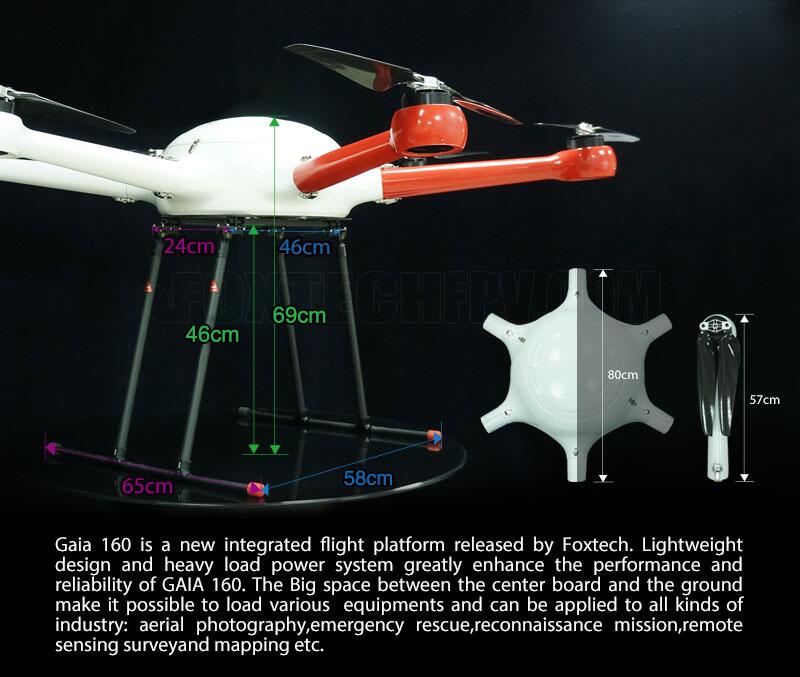

Dimensions 65 × 58 × 69 cm
Flight Time

45 min

Maximum Capacity Load

30kg

  • The default shipping method of GAIA 160MP is EMS
  • The default version of the landing gear of GAIA 160MP is 40cm in length (possible customization of 50cm landing gear version)
  • Version: Multipurpose heavy-lift drone
  • Wheelbase: 1620mm
  • Frame Weight: 5.8kg(with landing gear)
  • Take-off Weight: ≥48kg
  • Flight Time: ≥45min(4x6s 16000mah)
  • Max Effective Load: 30kg
  • Max flying Speed: 10m/s
  • Max Lifting Speed: 5m/s
  • Max Descent Speed: 4m/s
  • Max Angle of Inclination: 45°
  • Suggested Flight Altitude: ≤500m
  • Working Temperature: -10 ~ +55 ℃
  • Hover Precision: Vertical Direction ±0.5m, Horizontal Direction: ±1.5 m
  • Closed fuselage structure, high strength, rain resistance
  • Large load space, more stable flight
  • Long flight time
  • Powerful and high-efficiency power system
  • Convenient operation, easy maintenance

N3 RTF Combo:

-1 x GAIA 160MP hexacopter frame

-6 x T-MOTOR P80 III KV100

-6 x T-MOTOR FLAME 80A HV V2.0

-3 x 3010 Carbon Fiber Propeller

-1 x DJI N3 flight controller

-1 x DJI Lightbridge 2

-1 x Dual Landing Gear

-1 x EFT V3 High Current Power Distribution Board



-1 x Assembly and Fly Test Package

-1 x Plug/Cable/Wires/Shrink Tubing etc

A3 RTF Combo:

-1 x GAIA 160MP hexacopter frame

-6 x T-MOTOR P80 III KV100

-6 x T-MOTOR FLAME 80A HV V2.0

-3 x 3010 Carbon Fiber Propeller

-1 x DJI A3 flight controller

-1 x DJI Lightbridge 2

-1 x Dual Landing Gear

-1 x EFT V3 High Current Power Distribution Board

-1 x Assembly and Fly Test Package

-1 x Plug/Cable/Wires/Shrink Tubing etc

Pixhawk RTF Combo:

-1 x GAIA 160MP hexacopter frame

-6 x T-MOTOR P80 III KV100

-6 x T-MOTOR FLAME 80A HV V2.0

-3 x 3010 Carbon Fiber Propeller

-1 x Pixhawk Cube Orange Standard Set with Here 3 GNSS

-1 x Foxtech DA16S+ 16-Channel Radio Controller

-1 x Dual Landing Gear

-1 x EFT V3 High Current Power Distribution Board

-1 x Assembly and Fly Test Package

-1 x Plug/Cable/Wires/Shrink Tubing etc

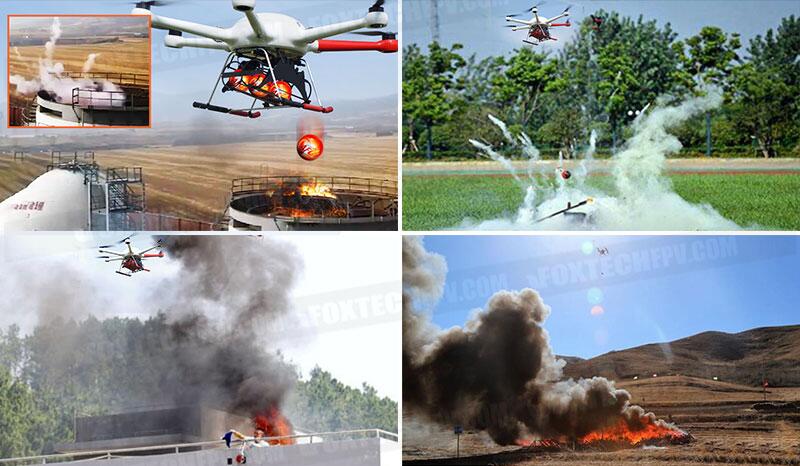

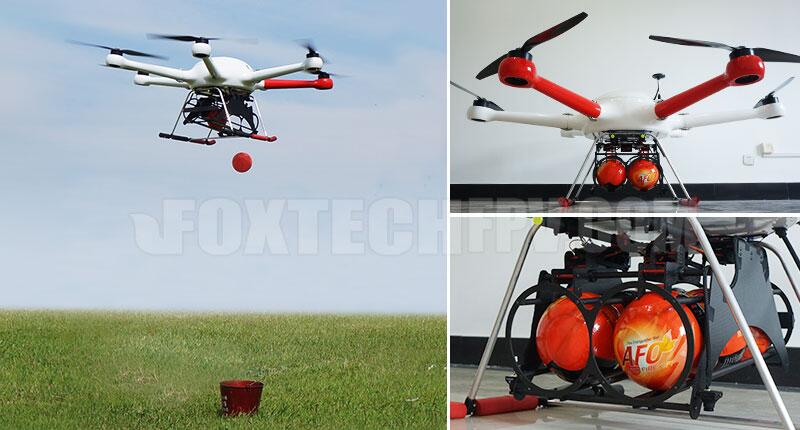

Pixhawk Fire Fighting RTF Combo:

-1 x GAIA 160MP hexacopter frame

-6 x T-MOTOR P80 III KV100

-6 x T-MOTOR FLAME 80A HV V2.0

-3 x 3010 Carbon Fiber Propeller

-1 x Pixhawk Cube Orange Standard Set with Here 3 GNSS

-1 x Foxtech DA16S+ 16-Channel Radio Controller

-1 x Dual Landing Gear

-1 x EFT V3 High Current Power Distribution Board

-1 x Foxtech RDD-6(fire extinguisher balls not included)

-1 x 6-Channel Radio Controller

-1 x Assembly and Fly Test Package

-1 x Plug/Cable/Wires/Shrink Tubing etc

Options:

– Flight Controller: DJI N3/DJI A3

– 4x Battery: Foxtech Diamond 6S 30000mAh Semi-solid State Lipo Battery / TATTU 22.8V 6S 25000mAh 10C High Voltage Lipo Battery

– Remote Controller: DJI Lightbridge 2/Futaba 14SG Radio Controller

– Gimbal: Ronin-MX
